(2-22) - U-JOINT ASSEMBLY, 700704568 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8830 (2-22) - U-JOINT ASSEMBLY, 700704568 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS

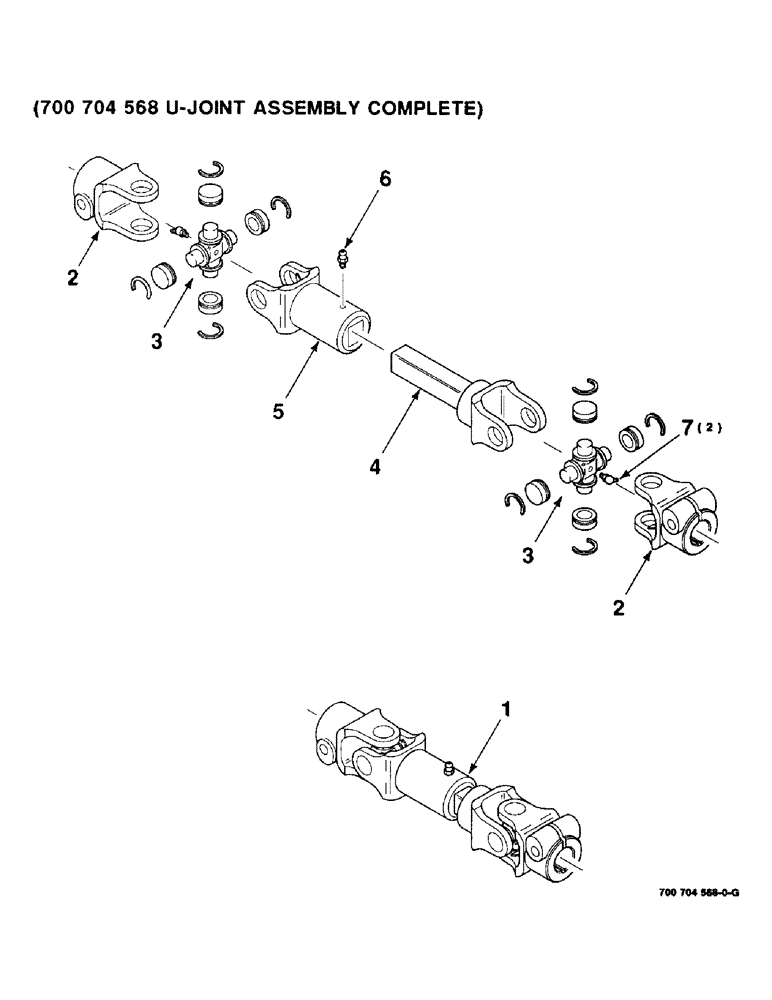

Схема запчастей Case IH 8830 - (2-22) - U-JOINT ASSEMBLY, 700704568 U-JOINT ASSEMBLY COMPLETE (09) - CHASSIS
2
5
6
2
7
3
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700704568

UNIVERSAL JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

757716

CLAMP

YOKE

2шт.

3

757443

U-JOINT SPIDER

JOURNAL REPAIR KIT

2шт.

4

700704887

YOKE

- shaft

1шт.

5

700704888

YOKE

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

2шт.
