Запчасти Case IH 8830 (2-14) - HAY CONDITIONER DRIVE ASSEMBLY, 12 FOOT (09) - CHASSIS

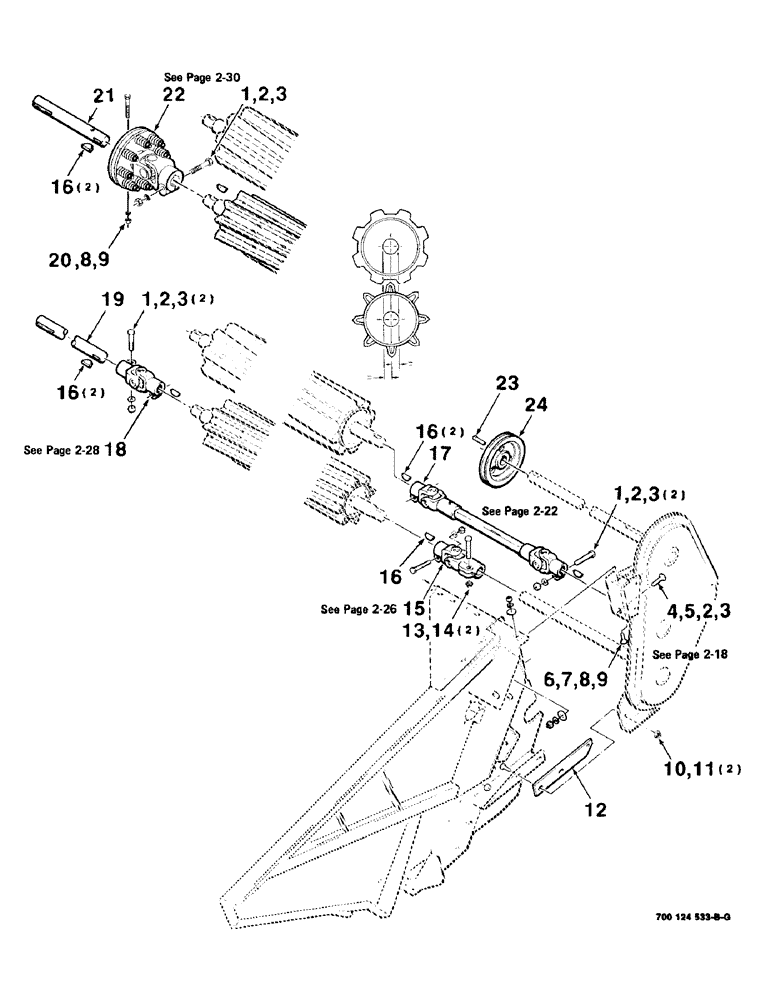

Схема запчастей Case IH 8830 - (2-14) - HAY CONDITIONER DRIVE ASSEMBLY, 12 FOOT (09) - CHASSIS
16
2
16
8
22
9
20
3
11
6
15
16
5
18
23
3
16
1
3
2
24
13
7
9
10
2
21
4
14
3
19
12
1
17
8
2
1

Артикул

Название

Примечание

Количество

1

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

5шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

700110756

STRAP

- mounting

1шт.

13

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

14

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

15

700705515

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

16

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

7шт.

17

700704568

UNIVERSAL JOINT

U-JOINT ASSEMBLY - double

1шт.

18

700705457

UNIVERSAL JOINT

U-JOINT ASSEMBLY (S.N. CFH0029001 thru CFH0029758)

1шт.

19

700121372

SHAFT

(S.N. CFH0029001 thru CFH0029758)

1шт.

20

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

21

700121372

SHAFT

(S.N. CFH0029759 and later)

1шт.

22

700710451

CLUTCH

U-JOINT CLUTCH ASSEMBLY (S.N. CFH0029759 and later)

1шт.

23

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 X 5/16 X 2 GIB KEY

1шт.

24

700110623

PULLEY

SHEAVE

1шт.

Выбрано товаров: 24
