Запчасти Case IH 8820 (2-04) - JACKSHAFT DRIVE ASSEMBLY, 14 FOOT (09) - CHASSIS

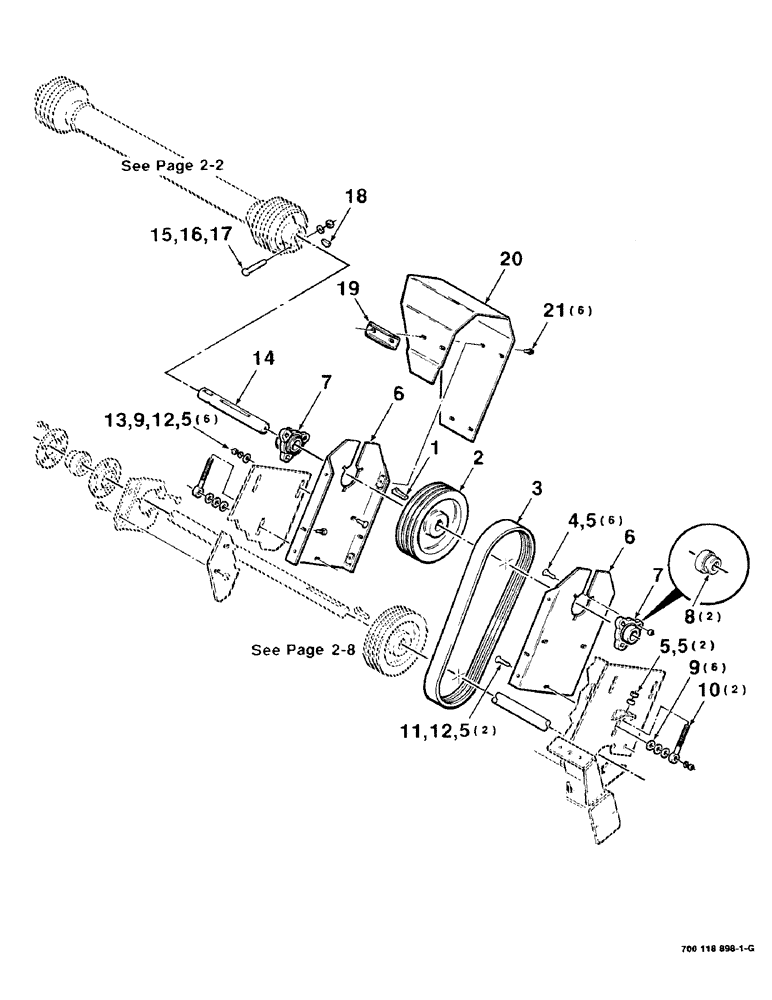

Схема запчастей Case IH 8820 - (2-04) - JACKSHAFT DRIVE ASSEMBLY, 14 FOOT (09) - CHASSIS
12
16
7
5
3
17
1
21
13
11
12
15
8
2
6
9
7
5
18
4
5
20
9
5
10
14
19
6
5

Артикул

Название

Примечание

Количество

1

761205

KEY

5/16 x 5/16 x 2 GIB KEY

1шт.

2

700118923

SHEAVE

- 3 groove

1шт.

3

856419

V-BELT,0.49" W x 56.00" L

3 Powerband 0.49" W x 56.00" L

1шт.

4

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 RHSNB

6шт.

5

704023

NUT,3/8"-16, G5

3/8-16 H

18шт.

6

700118917

SUPPORT

- bearing

2шт.

7

714394

HOUSING ASSY.

BEARING - pillow block (Includes item 8)

2шт.

8

50336

SHIELD,3.75 mm ID x 62 mm OD x 16, 48.41 mm

- spherical

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

12шт.

10

238469

SHIM

3/8-16 x 4-1/4 EYEBOLT

2шт.

11

68767

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G5

3/8-16 x 1-3/4 RHSNB

2шт.

12

705038

CONTROL VALVE

3/8"

8шт.

13

700047

BOLT

3/8-16 x 1 RHSNB

6шт.

14

700118918

SHAFT

- input

1шт.

15

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 C

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

704031

NUT

1/2-13 H

1шт.

18

761197

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5/16 x 1-3/4 WOODRUFF KEY

1шт.

19

700119184

CHANNEL

1шт.

20

700118921

SHIELD

- sheave

1шт.

21

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

6шт.

Выбрано товаров: 21
