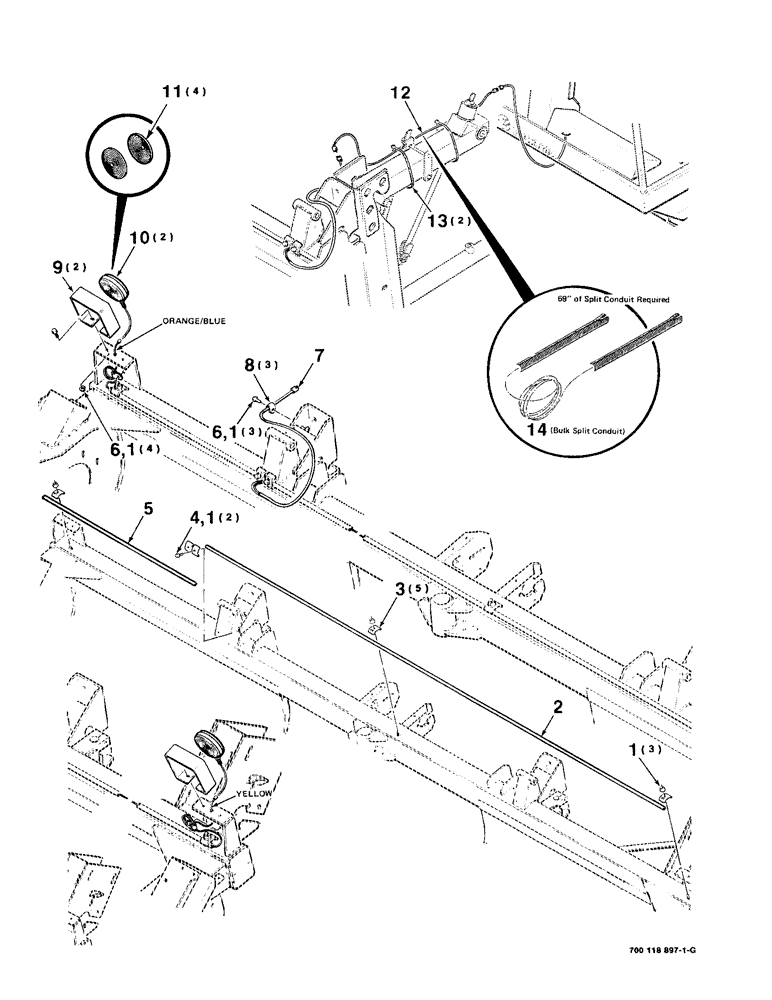

Запчасти Case IH 8820 (4-2) - WIRING AND FLASHER LIGHT ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

12шт.

2

700115453

TUBE,12.7 mm OD, 3245 mm Length

- wiring, left (14 foot)

1шт.

700118957

TUBE,12.7 mm OD, 3550 mm Length

- wiring, left (16 foot)

1шт.

3

6251375

CLAMP

- wiring

5шт.

4

7883341

SCREW,Hex Washer, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 HWHMS

2шт.

5

700118956

TUBE,12.7 mm OD, 1075 mm Length

- wiring, right (14 foot)

1шт.

700118958

TUBE,12.7 mm OD, 1380 mm Length

- wiring, right (16 foot)

1шт.

6

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

7шт.

7

700708824

HARNESS

- flasher

1шт.

8

700708090

CLAMP

- wiring

3шт.

9

700114720

GUARD

- light

2шт.

10

700708036

SIDE LAMP ASSY

LIGHT - flasher

2шт.

11

700711749

LENS

- flasher

4шт.

12

700708704

WIRE HARNESS

HARNESS - wiring, extension

1шт.

13

722470

MOUNTING CLIP

TIE - cable

2шт.

14

702400101

FLEXIBLE SHEATH

CONDUIT (13 foot bulk length)

1шт.
