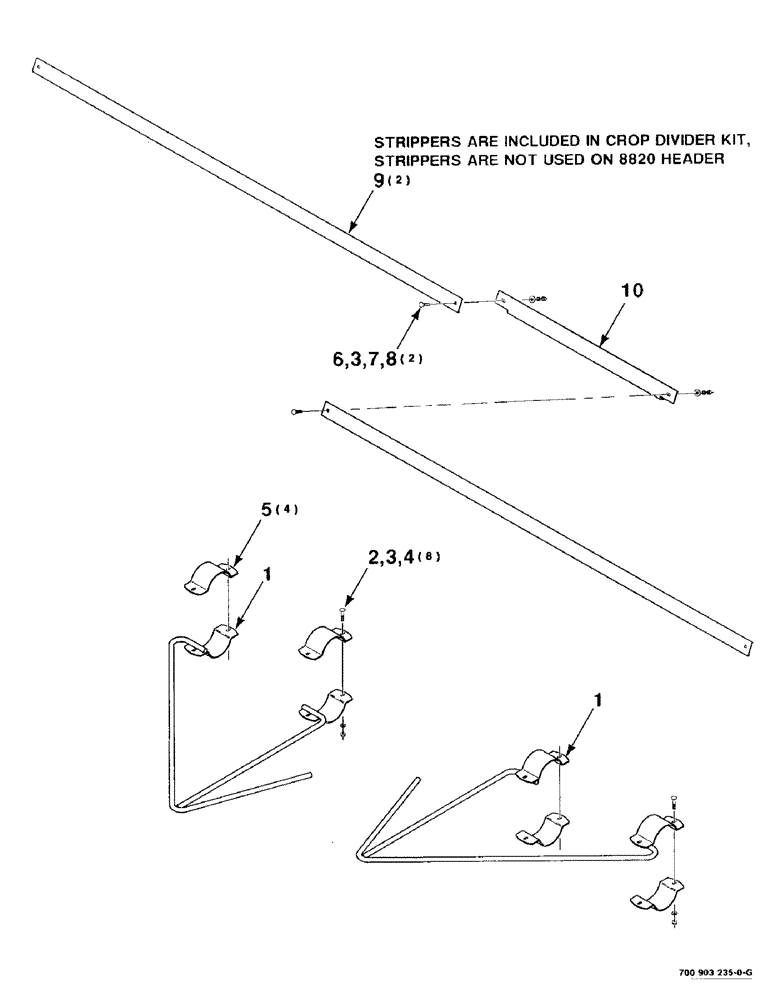

Запчасти Case IH 8820 (9-4) - CROP DIVIDER KIT (09) - CHASSIS

HK60809

DIODE ELEMENT

CROP DIVIDER KIT COMPLETE

1шт.

1

700111547

ROD

WA - divider

2шт.

2

7770316

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 x 1-3/4 RHSNB

8шт.

3

705525

WASHER

5/16 HARDENED PLAIN WASHER

10шт.

4

704239

FRONT AXLE

5/16-18 HFSLN

8шт.

5

700111549

CLAMP

- half

4шт.

6

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

7

705020

LOCK WASHER

5/16"

2шт.

8

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

9

700129385

STRIPPER

2шт.

10

700111550

STRIPPER

- center

1шт.
