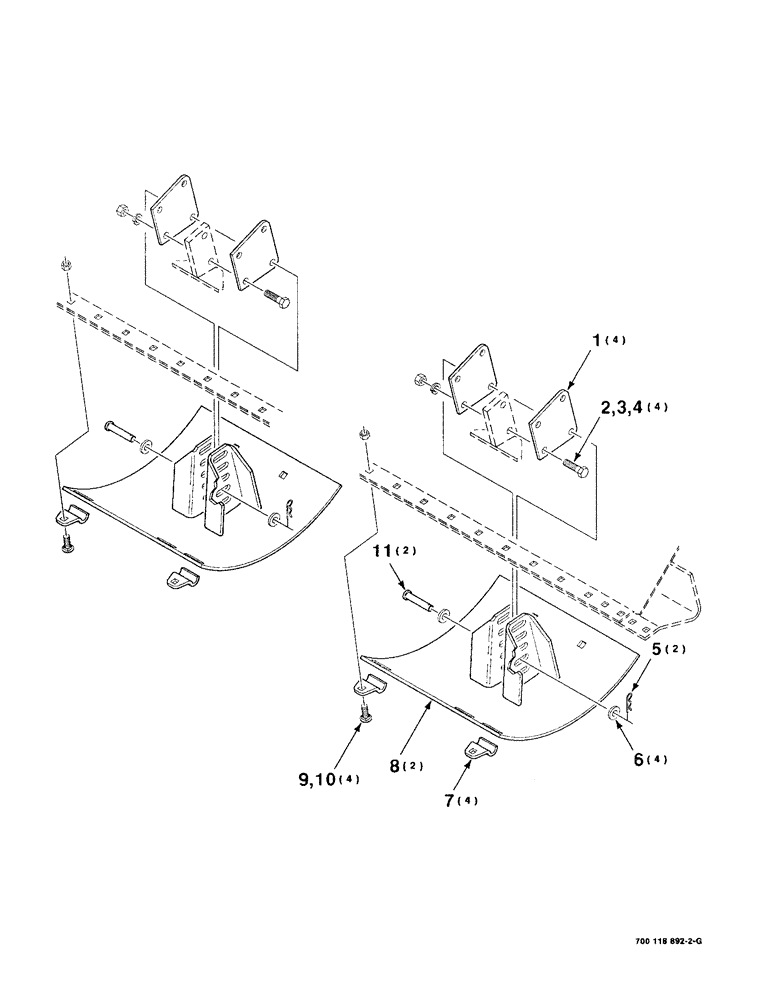

Запчасти Case IH 8820 (7-20) - HEADER SKID SHOE ASSEMBLIES, 14 AND 16 FOOT (09) - CHASSIS

1

1662074

PLATE

- mounting

4шт.

2

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

86516876

COVER

1/2-13 H

4шт.

5

S120261

PIN

.149 WIRE HAIR PIN COTTER

2шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

7

6453799

CLIP

- shoe

4шт.

8

700102386

SHOE

SKID SHOE WA

2шт.

9

700476

BOLT,Round, 7/16" - 14 x 1 1/4", Grade 5

7/16-14 x 1-1/4 RHSNB

4шт.

10

704080

NUT,7/16"-14, G5

7/16-14 H

4шт.

11

063875

CLEVIS PIN

1/2 x 2-1/2 CLEVIS PIN

2шт.
