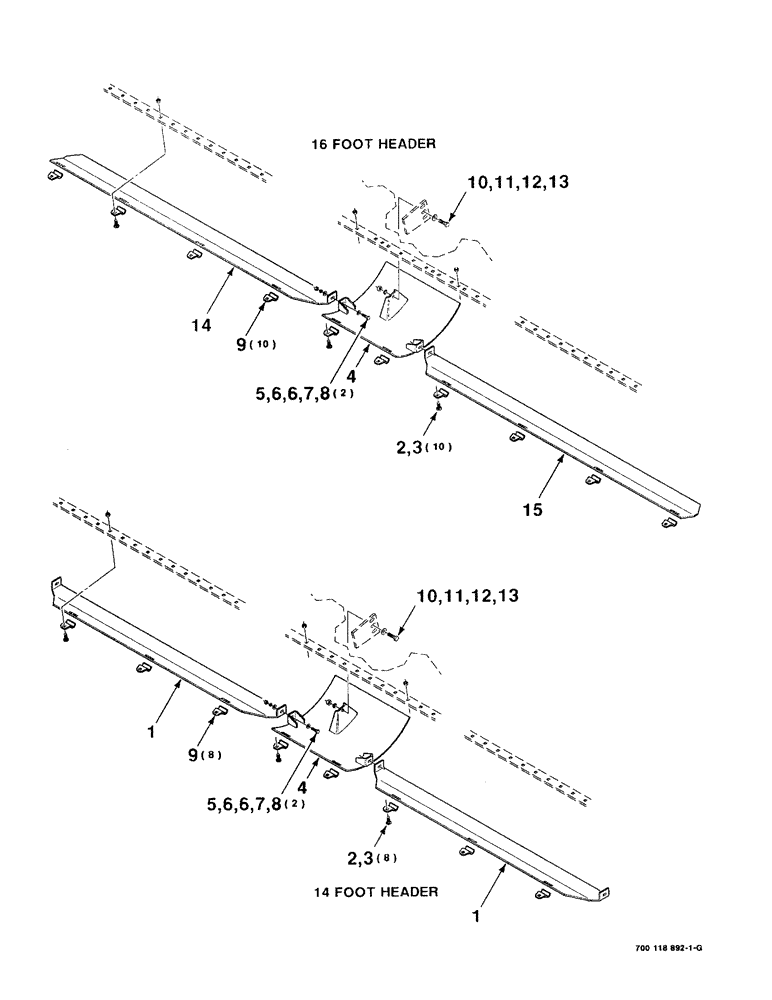

Запчасти Case IH 8820 (7-18) - HEADER WEAR PLATE ASSEMBLY, 14 AND 16 FOOT (09) - CHASSIS

1

6455463

PLATE

- wear, 14 foot

2шт.

2

700476

BOLT,Round, 7/16" - 14 x 1 1/4", Grade 5

7/16-14 x 1-1/4 RHSNB

18шт.

3

704080

NUT,7/16"-14, G5

7/16-14 H

18шт.

4

6455455

SHOE

SKID SHOE WA - center

2шт.

5

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

4шт.

6

705533

WASHER

3/8 HARDENED PLAIN WASHER

8шт.

7

705038

CONTROL VALVE

3/8"

4шт.

8

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

9

6453799

CLIP

- skid shoe

18шт.

10

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 C

2шт.

11

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

704031

NUT

1/2-13 H

2шт.

14

700110412

PLATE

- wear, right, 16 foot

1шт.

15

700110410

PLATE

- wear, left, 16 foot

1шт.
