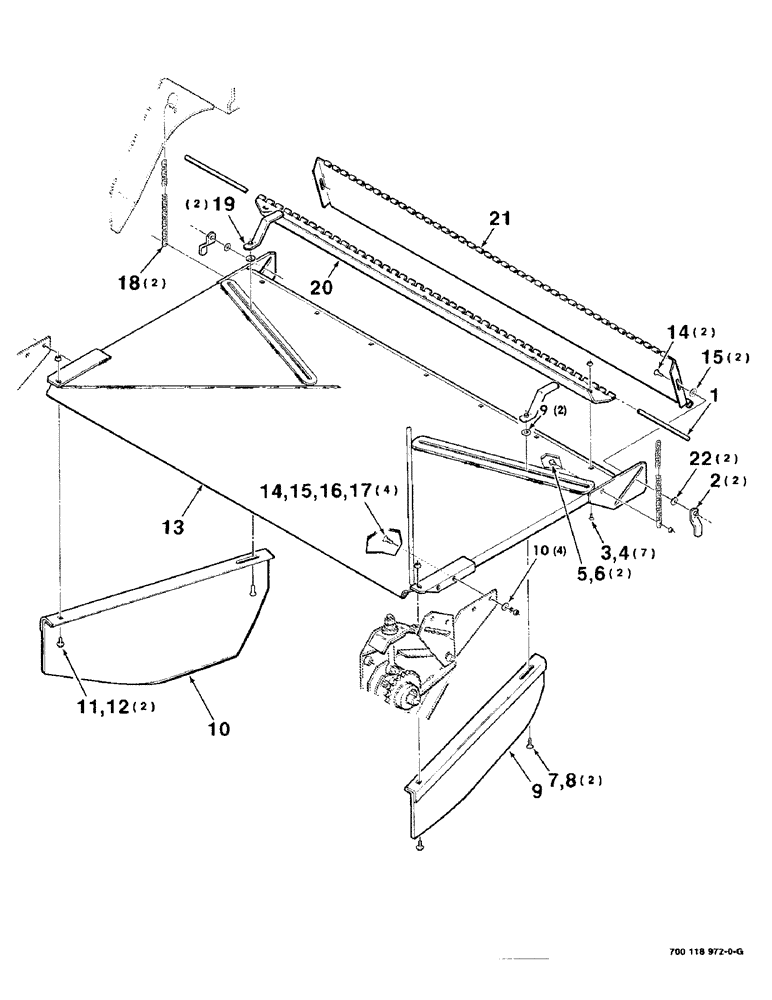

Запчасти Case IH 8820 (7-16) - WINDROW FORMING SHIELDS (09) - CHASSIS

1

70011946

PIN - hinge

1шт.

2

6232532

NUT

2шт.

3

7770282

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 RHSNB

7шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

7шт.

5

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

6

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

7

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

8

705525

WASHER

5/16 HARDEND PLAIN WASHER

2шт.

9

700118966

SHIELD

- forming, left

1шт.

10

700118967

SHIELD

- forming, right

1шт.

11

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

2шт.

12

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

13

700118973

SHIELD

- top

1шт.

14

700047

BOLT

3/8-16 x 1 RHSNB

6шт.

15

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

6шт.

16

705038

CONTROL VALVE

3/8"

4шт.

17

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

18

1661986

CHAIN (AG)

CHAIN - machine - 26 links

2шт.

19

6457469

LEVER ASSY.

LEVER

2шт.

20

700118978

HINGE

1шт.

21

700118979

DEFLECTOR

- rear

1шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.
