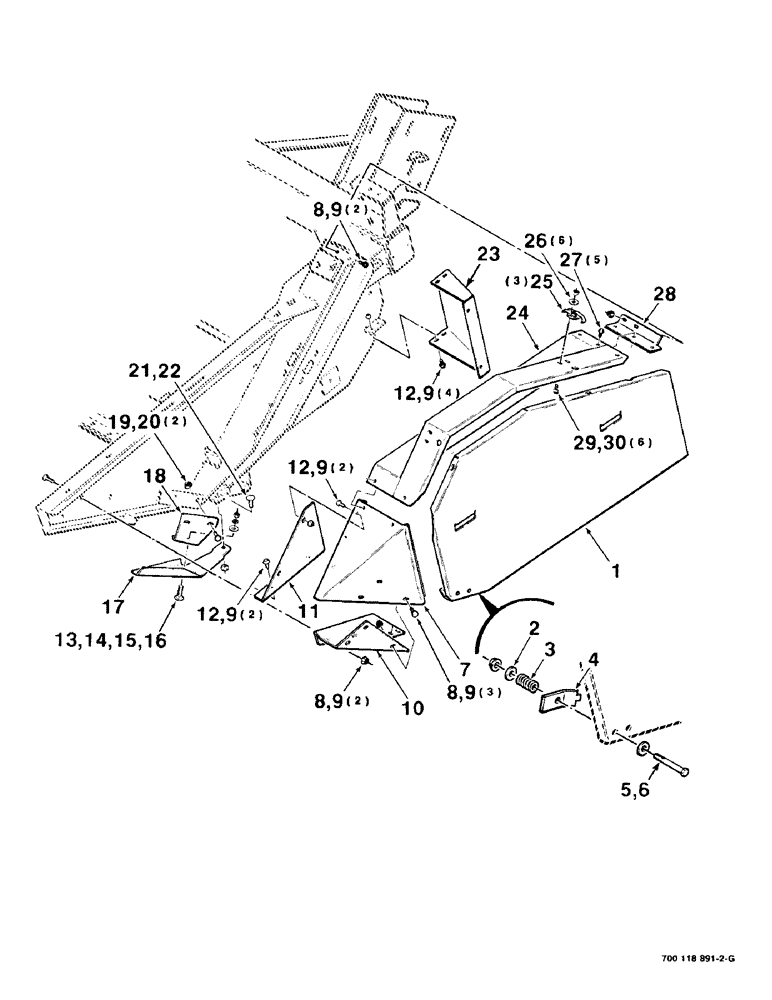

Запчасти Case IH 8820 (7-14) - HEADER SHIELDS ASSEMBLY, LEFT (09) - CHASSIS

1

700119507

SHIELD

- left

1шт.

2

700709602

WASHER,5/16"

5/16 WIDE PLAIN WASHER

1шт.

3

758342

CABLE

1шт.

4

700121397

CLIP

1шт.

5

7703945

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 x 2-1/2 C

1шт.

6

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

7

700119505

SHIELD

- deflector

1шт.

8

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

7шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

15шт.

10

700119502

PANEL

- deflector, lower

1шт.

11

1662085

SHIELD

- inner

1шт.

12

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

8шт.

13

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 PLOW BOLT

1шт.

14

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

15

705038

CONTROL VALVE

3/8"

1шт.

16

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

17

6830715

DIVIDER

- shoe, left

1шт.

18

6830723

BRACKET

- left

1шт.

19

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

2шт.

20

704247

NUT

3/8-16 HFSLN

2шт.

21

700492

CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G5. Full Thd

7/16-14 x 1 RHSNB

1шт.

22

704080

NUT,7/16"-14, G5

7/16-14 H

1шт.

23

700119504

CAP

- rear

1шт.

24

700119527

SHIELD

- cover

1шт.

25

700706849

LATCH

3шт.

26

705699

WASHER,#12

WIDE PLAIN WASHER #12

6шт.

27

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

5шт.

28

700119500

SUPPORT

- cover

1шт.

29

700070227

SCREW,Hex Wash Hd, #12-24 x 1/2"

#12-24 x 1/2 HWHMS

6шт.

30

7774888

NUT

#12-24 H GR2

6шт.
