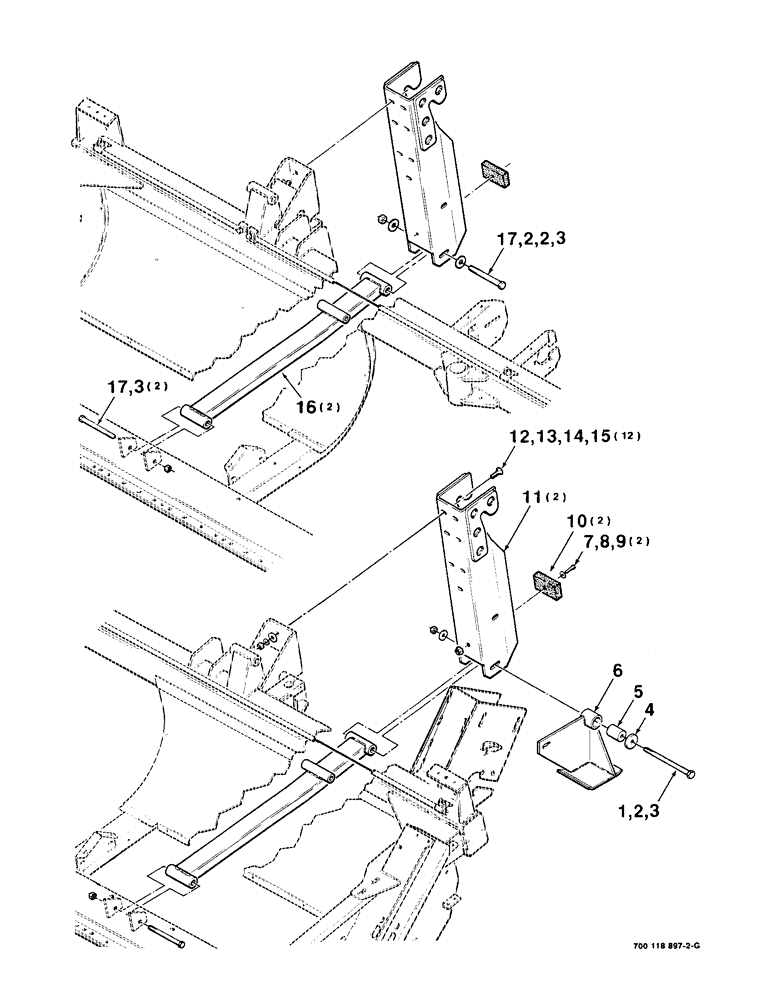

Запчасти Case IH 8820 (7-12) - HEADER LOWER LIFT AND CHANNEL ASSEMBLY (09) - CHASSIS

1

700709359

BOLT,Hex, 5/8" - 11 x 8 1/2", Gr 5

5/8-11 x 8-1/2 C

1шт.

2

705582

WASHER

5/8 HARDENED PLAIN WASHER

3шт.

3

704130

NUT,5/8"-11, G5

5/8-11 H

4шт.

4

6555346

WASHER

1шт.

5

6822803

BUSHING

1шт.

6

700119836

PLATE

LEG

1шт.

7

7706768

DRIVE BUSHING,38.25mm ID x 47.74mm OD x 36.1mm L

5/16-18 x 1-1/4 C

2шт.

8

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

9

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

10

700707584

PAD

- neoprene

2шт.

11

700118910

CHANNEL

- vertical

2шт.

12

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 x 1-1/4 RHSNB

12шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

12шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

15

86516876

COVER

1/2-13 H

12шт.

16

700118914

ARM

WA - lift, lower

2шт.

17

7771017

SPECIAL BOLT,5/8" - 11 x 6", Gr 5

5/8-11 x 6 C

3шт.
