Запчасти Case IH 8820 (7-06) - HEADER STIFFENER CROSS MEMBER ASSEMBLY (09) - CHASSIS

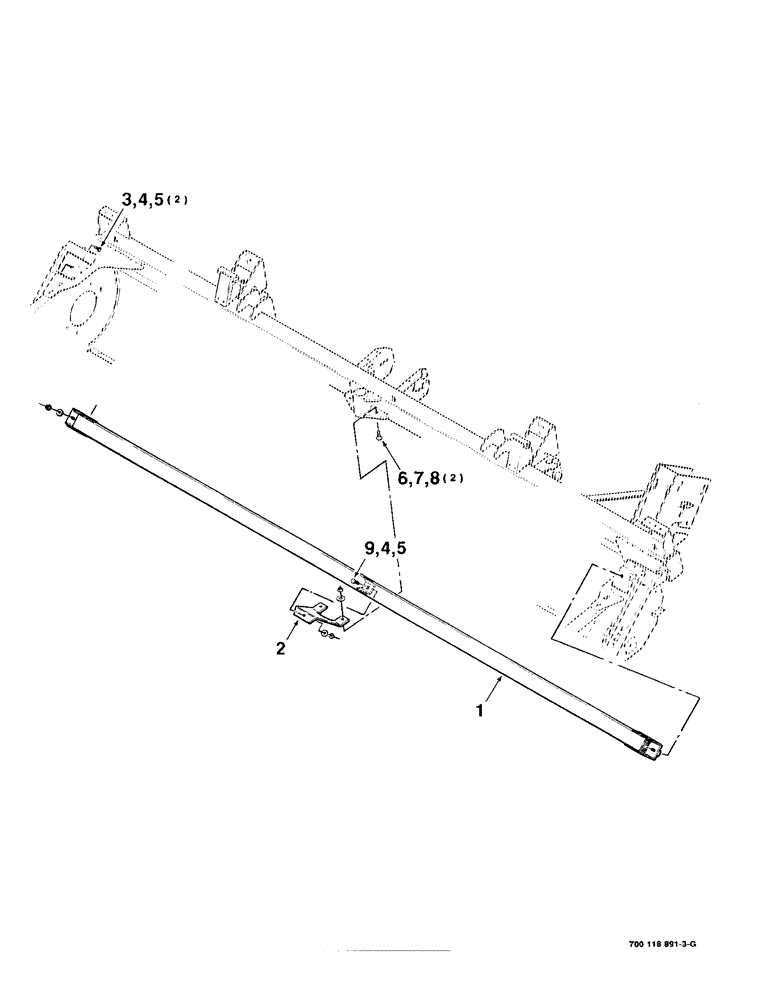

Схема запчастей Case IH 8820 - (7-06) - HEADER STIFFENER CROSS MEMBER ASSEMBLY (09) - CHASSIS
9
5
8
2
3
7
4
6
1
4
5

Артикул

Название

Примечание

Количество

1

700122544

CROSSMEMBER

SUPPORT WA - cross member (14 foot)

1шт.

700108073

CROSSMEMBER

SUPPORT WA - cross member (16 foot)

1шт.

2

1662068

MOUNTING PARTS

MOUNTING - center

1шт.

3

702589

CAPSCREW

1/2-20 x 1-3/4 C

2шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

3шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

6

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

2шт.

7

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

8

704726

LOCK NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

9

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 x 1-1/4 RHSNB

1шт.

Выбрано товаров: 10
