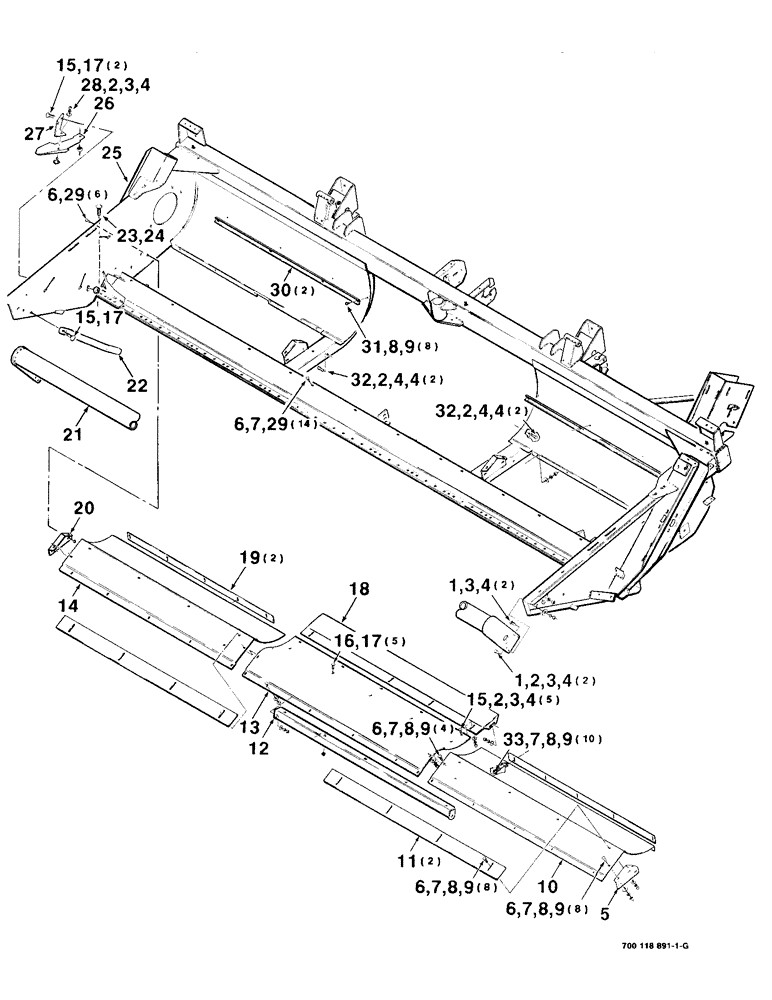

Запчасти Case IH 8820 (7-02) - HEADER FRAME, PANS AND LEAN BAR ASSEMBLIES, 14 FOOT (09) - CHASSIS

1

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

2

705533

WASHER

3/8 HARDENED PLAIN WASHER

12шт.

3

705038

CONTROL VALVE

3/8"

10шт.

4

704023

NUT,3/8"-16, G5

3/8-16 H

18шт.

5

1662090

SUPPORT

- pan, left

1шт.

6

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

40шт.

7

705525

WASHER

5/16 HARDENED PLAIN WASHER

44шт.

8

705020

LOCK WASHER

5/16"

38шт.

9

704015

NUT,5/16"-18, G5

5/16-18 H

38шт.

10

700108039

PAN

- lower, left

1шт.

11

700108046

STRIPPER

- front, auger

2шт.

12

700108042

SUPPORT

- pan, center

1шт.

13

700108041

PAN

- center

1шт.

14

700108040

PAN

- lower, right

1шт.

15

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

8шт.

16

700047

BOLT

3/8-16 x 1 RHSNB

5шт.

17

704247

NUT

3/8-16 HFSLN

8шт.

18

700108051

DEFLECTOR

SHIELD - deflector

1шт.

19

700108047

STRIPPER

- rear, auger

2шт.

20

1662091

SUPPORT

- pan, right

1шт.

21

1662125

BAR

LEAN BAR

1шт.

22

262626

RETAINING WIRE

- deflector

1шт.

23

700492

CARRIAGE BOLT,Short NK, 7/16"-14 x 1", G5. Full Thd

7/16-14 x 1 RHSNB

1шт.

24

704080

NUT,7/16"-14, G5

7/16-14 H

1шт.

25

700118930

BAR

HEADER FRAME WA

1шт.

26

6830749

DIVIDER

- right

1шт.

27

6830756

BRACKET

- right

1шт.

28

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 PLOW BOLT

1шт.

29

704239

FRONT AXLE

5/16-18 HFSLN

20шт.

30

700108045

STRIPPER

CHANNEL - stripper

2шт.

31

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

8шт.

32

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

4шт.

33

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

10шт.
