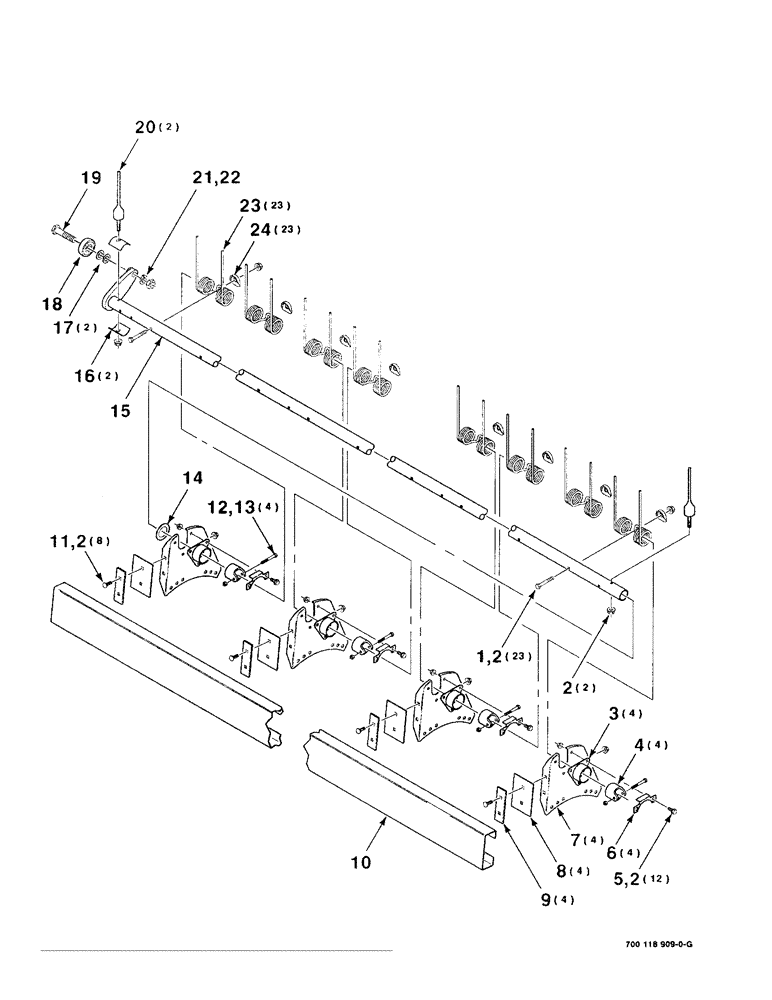

Запчасти Case IH 8820 (6-14) - REEL BAT AND TINE TUBE ASSEMBLY, 16 FOOT, TINE TUBE ASSEMBLY B (09) - CHASSIS

1

7703507

DECAL,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 C

23шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

45шт.

3

6105621

FLANGE

HOUSING - bearing

4шт.

4

6105159

NYLON BEARING,1.75"

BEARING - tine

4шт.

5

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

12шт.

6

6831986

COVER

- bearing

4шт.

7

700114555

SUPPORT

- bearing

4шт.

8

700114544

LARGE PLATE

PLATE - reel

4шт.

9

700114543

RETAINER

4шт.

10

700124069

BAT

- reel

1шт.

11

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

8шт.

12

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 C

4шт.

13

430-4214

1/4-20 HCLN GR A

4шт.

14

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 x 14 GAUGE NRMB

1шт.

15

6832042

TUBE

WA - tine, 16 foot "B"

1шт.

16

700117971

RETAINER

- tube

2шт.

17

52233

BUSHING

5/8 x 14 GAUGE NRMB

2шт.

18

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.

19

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

5/8-18 x 2-1/4 C SPECIAL

1шт.

20

756163

TINE

- single

2шт.

21

705061

PLUG

5/8"

1шт.

22

7774359

JAM NUT

5/8-18 HEX JAM NUT GR 2

1шт.

23

750075

TINE

- double

23шт.

24

261024

CLIP

- tine

23шт.
