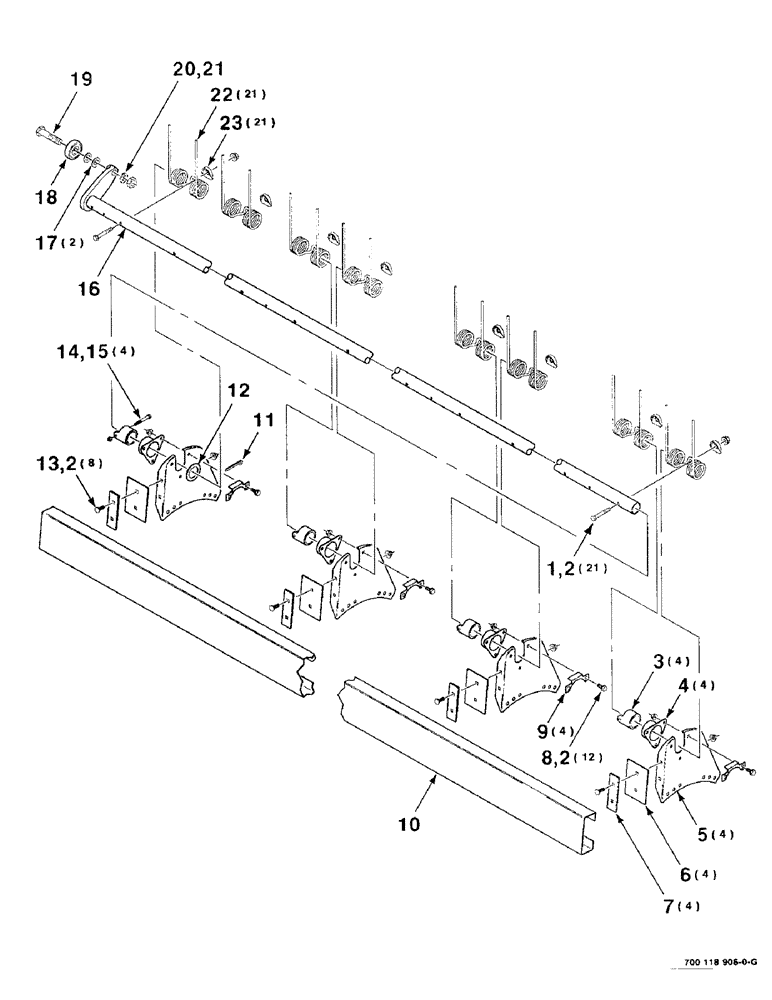

Запчасти Case IH 8820 (6-08) - REEL BAT AND TINE TUBE ASSEMBLY, 14 FOOT, TINE TUBE ASSEMBLY A (09) - CHASSIS

1

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 C

21шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

41шт.

3

6105159

NYLON BEARING,1.75"

BEARING - tine

4шт.

4

6105621

FLANGE

HOUSING - bearing

4шт.

5

700114555

SUPPORT

- bearing

4шт.

6

700114544

LARGE PLATE

PLATE - reel

4шт.

7

700114543

RETAINER

4шт.

8

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

12шт.

9

6831986

COVER

- bearing

4шт.

10

700124068

BAT ASSY.

BAT - reel

1шт.

11

62307

PIN

1/4 x 2 COTTER PIN

1шт.

12

52274

WASHER

1-3/8 x 14 GAUGE NRMB

1шт.

13

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

8шт.

14

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 C

4шт.

15

704783

SHIM,.020" Thk

1/4-20 HCLN GR A

4шт.

16

6831929

TUBE

WA - tine, 14 foot "A"

1шт.

17

52233

BUSHING

5/8 x 14 GAUGE NRMB

2шт.

18

711770

CAB

BEARING

1шт.

19

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

5/8-18 x 2-1/4 C SPECIAL

1шт.

20

705061

PLUG

5/8"

1шт.

21

7774359

JAM NUT

5/8-18 HEX JAM NUT GR 2

1шт.

22

750075

TINE

- double

21шт.

23

261024

CLIP

- tine

21шт.
