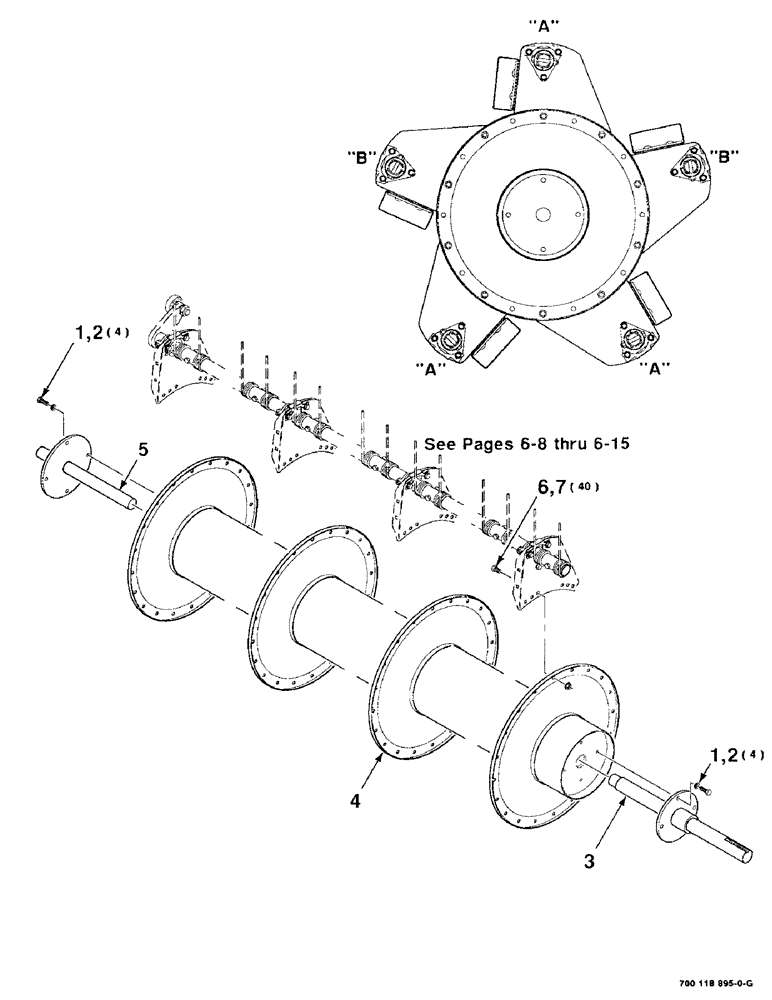

Запчасти Case IH 8820 (6-06) - REEL ASSEMBLY, 14 AND 16 FOOT (09) - CHASSIS

1

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

8шт.

2

705038

CONTROL VALVE

3/8"

8шт.

3

1661884

SHAFT

WA - left

1шт.

4

1660897

REEL

WA - 14 foot

1шт.

1660898

REEL

WA - 16 foot

1шт.

5

6832125

SHAFT

WA - right

1шт.

6

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 x 5/8 C

40шт.

7

704247

NUT

3/8-16 HFSLN

40шт.
