Запчасти Case IH 8820 (6-04) - REEL CAM AND LEFT MOUNTING ASSEMBLY (09) - CHASSIS

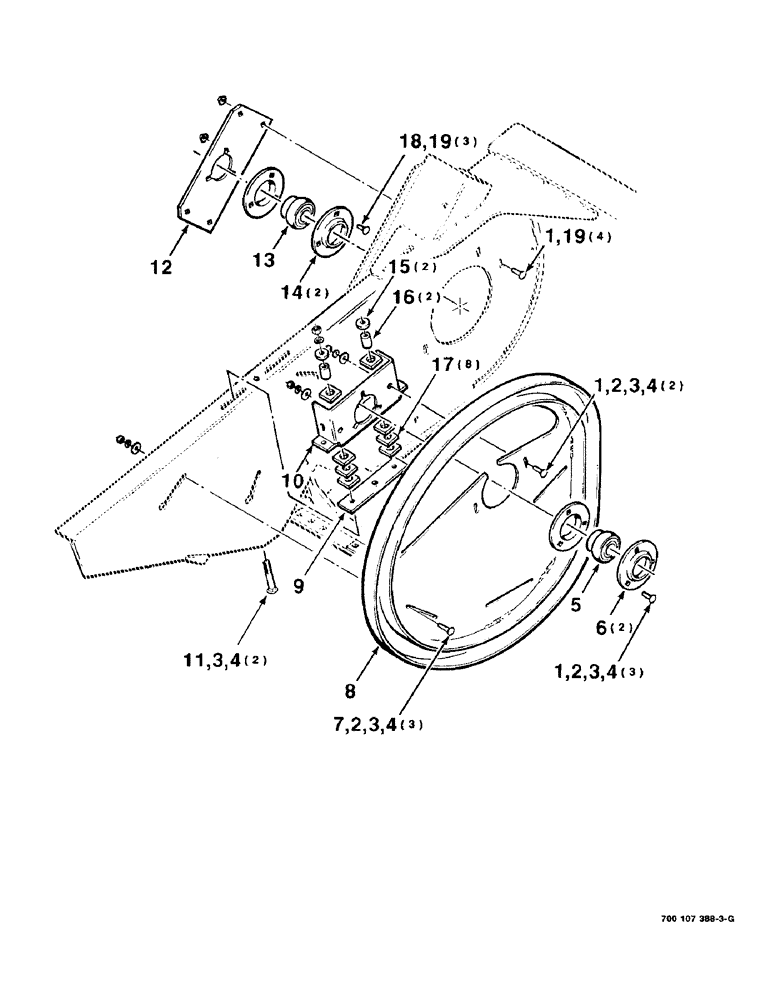

Схема запчастей Case IH 8820 - (6-04) - REEL CAM AND LEFT MOUNTING ASSEMBLY (09) - CHASSIS
4
1
1
2
2
12
13
11
8
4
15
19
4
7
17
4
3
14
2
5
3
18
16
19
3
10
1
3
6
9

Артикул

Название

Примечание

Количество

1

700047

BOLT

3/8-16 x 1 RHSNB

9шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

8шт.

3

705038

CONTROL VALVE

3/8"

10шт.

4

704023

NUT,3/8"-16, G5

3/8-16 H

10шт.

5

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

1шт.

6

51417

PIPE

- bearing

2шт.

7

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 RHSNB

3шт.

8

700124187

PULLEY

CAM TRACK WA

1шт.

9

700108140

STRAP

- shim

1шт.

10

700107390

SUPPORT

- reel, right

1шт.

11

7770506

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 RHSNB

2шт.

12

1661939

SUPPORT

- auger, right

1шт.

13

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

1шт.

14

50534

FLANGED BEARING

- bearing

2шт.

15

6178628

WASHER

2шт.

16

700108137

TUBE,10.747 mm ID, 0.75" OD, 33 mm Length

- spacer

2шт.

17

700108138

SHIM

- reel support

8шт.

18

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

3шт.

19

704247

NUT

3/8-16 HFSLN

7шт.

Выбрано товаров: 19
