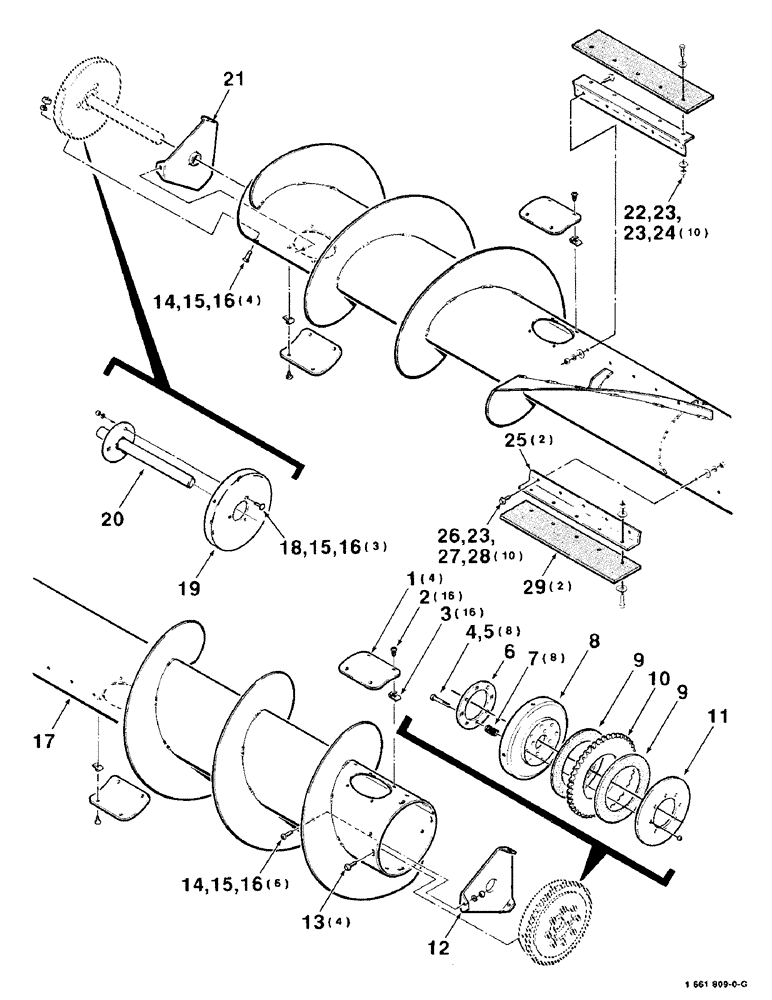

Запчасти Case IH 8820 (6-02) - AUGER AND AUGER CLUTCH ASSEMBLY (09) - CHASSIS

1

HFI101055

PLATE

- cover

4шт.

2

766303

SELF-TAP SCREW,Pan, #6 - 14 x 5/8"

#14-10 x 5/8 CRPHTFTS TYPE A

16шт.

3

74518

NUT

#14-10 SPRING NUT TYPE J

16шт.

4

7770399

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 5

5/16-18 x 3-1/2 RHSNB

8шт.

5

231-1445

NUT,5/16"-18, GB

5/16-18 LIGHT HEX STOP NUT

8шт.

6

1661869

PLATE

- retainer

1шт.

7

58644

SPRING

- compression

8шт.

8

1661870

CLUTCH

BULKHEAD - clutch

1шт.

9

700124269

DISC

- friction

2шт.

10

1661871

SPROCKET ASSY.

SPROCKET - 54 tooth

1шт.

11

1661872

PLATE

- end, clutch

1шт.

12

1661874

PARTITION

BULKHEAD - left

1шт.

13

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 HWHMS

4шт.

14

700701905

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 x 3/4 CRPHMS

10шт.

15

705038

CONTROL VALVE

3/8"

13шт.

16

704023

NUT,3/8"-16, G5

3/8-16 H

13шт.

17

1661892

AUGER

WA - with flighting (14 foot)

1шт.

700107374

AUGER

WA - with flighting (16 foot)

1шт.

18

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

3шт.

19

1661866

SUPPORT

BULKHEAD - end, right

1шт.

20

1661863

SHAFT

- right

1шт.

21

6461735

SUPPORT

BULKHEAD - right

1шт.

22

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 C

10шт.

23

705525

WASHER

5/16 HARDENED PLAIN WASHER

30шт.

24

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

10шт.

25

700101035

SUPPORT

- paddle

2шт.

26

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

10шт.

27

705020

LOCK WASHER

5/16"

10шт.

28

704015

NUT,5/16"-18, G5

5/16-18 H

10шт.

29

8027211

PADDLE

- rubber

2шт.
