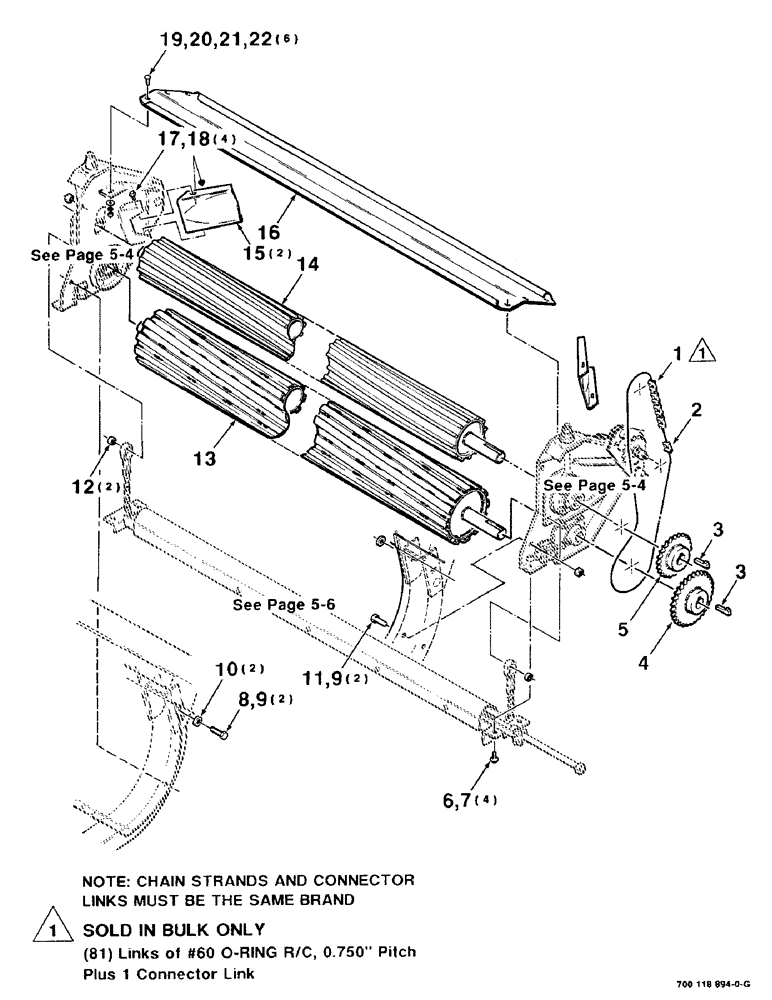

Запчасти Case IH 8820 (5-2) - HAY CONDITIONER ASSEMBLY (09) - CHASSIS

1

700704309

CHAIN (AG)

CHAIN - roller, #60 o-ring (10 foot bulk length)

1шт.

2

700709540

LINK

- connector, #60 o-ring R/C - diamond

1шт.

700702952

CONNECTING LINK

LINK - connector, #60 o-ring R/C - daido

1шт.

3

61432

BUCKET TOOTH KEY

3/8 x 3/8 x 1-1/2 GIB KEY

2шт.

4

1661918

SPROCKET ASSY.

SPROCKET - 30 tooth

1шт.

5

1661919

SPROCKET ASSY.

SPROCKET - 25 tooth

1шт.

6

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

4шт.

7

704247

NUT

3/8-16 HFSLN

4шт.

8

703793

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5, Full Thd

5/8-11 x 1-3/4 C

2шт.

9

704700

SUPPORT

5/8-11 HCLN

4шт.

10

6291892

SPACER

WASHER

2шт.

11

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 C

2шт.

12

428938

SPACER

2шт.

13

700108749

ROLL

WA - conditioner, lower

1шт.

14

700108781

ROLL

WA - conditioner, upper

1шт.

15

6831374

DEFLECTOR

- side

2шт.

16

700108780

PANEL

SHIELD - top

1шт.

17

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

4шт.

19

700047

BOLT

3/8-16 x 1 RHSNB

6шт.

20

705533

WASHER

3/8 HARDENED PLAIN WASHER

6шт.

21

705038

CONTROL VALVE

3/8"

6шт.

22

704023

NUT,3/8"-16, G5

3/8-16 H

6шт.
