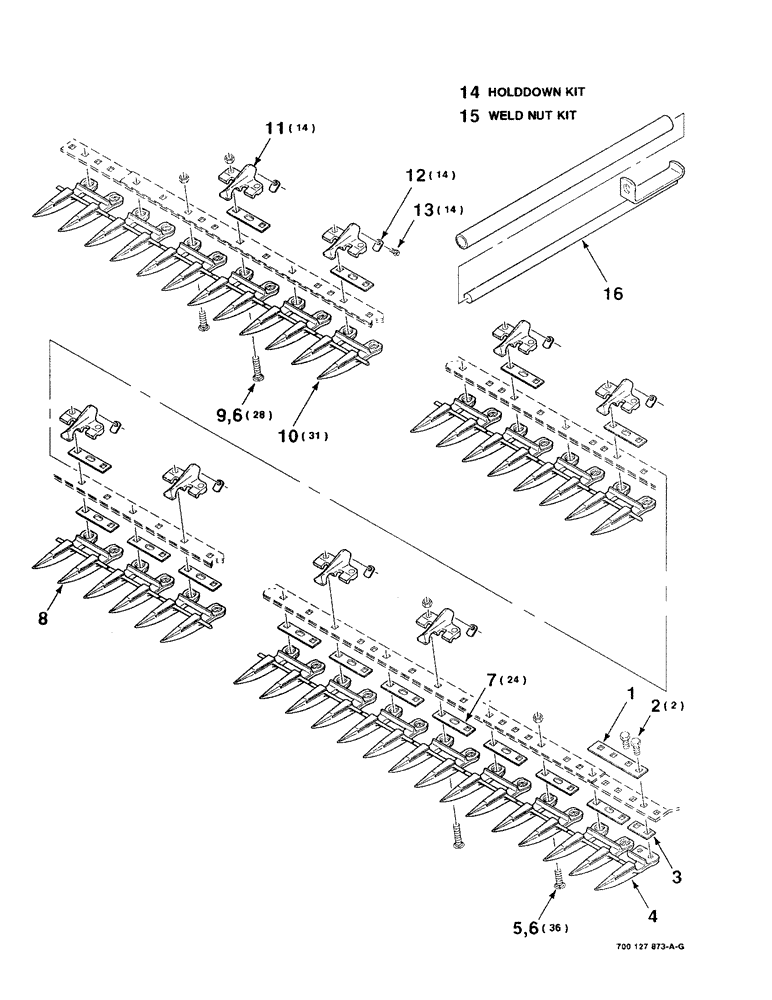

Запчасти Case IH 8820 (3-22) - HOLDDOWN AND GUARD ASSEMBLY, 16 FOOT RANGE GUARD (09) - CHASSIS

1

6832240

PLATE

- filler, left

1шт.

2

771501

BOLT,Hex, 7/16" - 20 x 1", Gr 5

7/16-20 x 1 C

2шт.

3

6832273

SHIM

- left

1шт.

4

NLS

NO LONGER SERVICED

- single

1шт.

5

700112

CONCAVE

7/16-14 x 1-1/2 RHSNB

36шт.

6

704080

NUT,7/16"-14, G5

7/16-14 H

64шт.

7

700111956

PLATE

SHIM

24шт.

8

700707464

GUARD

- double, center

1шт.

9

7770654

BOLT,Round, 7/16" - 14 x 2", Grade 5

7/16-14 x 2 RHSNB

28шт.

10

700707147

GUARD

- double

31шт.

11

700703453

FORK

HOLDDOWN

14шт.

12

700703455

NUT

WELD NUT

14шт.

13

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 C

14шт.

14

700107018

COVER PLATE

HOLDDOWN KIT - with hardware (Includes items 6, 9, 11, 12 and 13)

1шт.

15

700107019

KIT

WELD NUT KIT - with hardware (Includes 10 of items 12 and 13)

1шт.

16

6135081

GUARD

STRAIGHTENER TOOL

1шт.
