Запчасти Case IH 8820 (3-16) - SICKLE ASSEMBLY, LEFT AND RIGHT, 16 FOOT RIVETED, SMOOTH (09) - CHASSIS

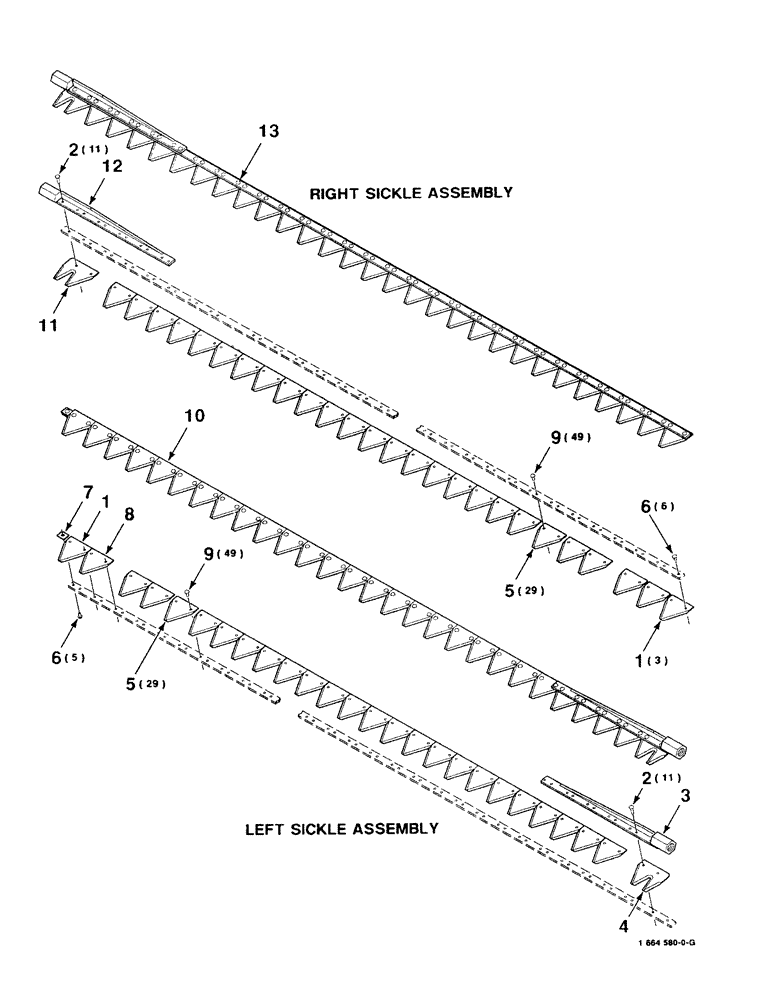

Схема запчастей Case IH 8820 - (3-16) - SICKLE ASSEMBLY, LEFT AND RIGHT, 16 FOOT RIVETED, SMOOTH (09) - CHASSIS
11
9
4
9
8
13
12
1
6
3
2
10
5
6
7
2
1
5

Артикул

Название

Примечание

Количество

1

748319

CUTTER BAR

SECTION - sickle

4шт.

2

64071

RIVET

#5-1/2 x 7/8 ROUND HEAD RIVET (Packaged 1 pound per box)

22шт.

3

6821078

HEAD

WA - sickle, left

1шт.

4

748145

KNIFE SECTION

SECTION - sickle, left, end

1шт.

5

49262

KNIFE SECTION

SECTION - sickle, smooth (Packaged 25 per box)

58шт.

6

64469

RIVET,Oval Hd, .211" x 7/16"

#5-1/2 x 7/16 ROUND HEAD RIVET (Packaged 1 pound per box)

11шт.

7

6821052

SHIM

- wear

1шт.

8

748327

CUTTER BAR

SECTION - sickle

1шт.

9

NLS

NO LONGER SERVICED

#5-1/2 x 9/16 ROUND HEAD RIVET (Packaged 1 pound per box)

98шт.

10

1664580

KNIFE ASSY

SICKLE ASM. COMPLETE - left, smooth

1шт.

11

748137

WIRE CONNECTOR

SECTION - sickle, right end

1шт.

12

6821136

HEAD

WA - sickle, right

1шт.

13

1664606

KNIFE ASSY

SICKLE ASM. COMPLETE - right, smooth

1шт.

Выбрано товаров: 13
