Запчасти Case IH 8820 (3-14) - SICKLE ASSEMBLY, LEFT AND RIGHT, 16 FOOT RIVETED, SERRATED, HEAVY DUTY (09) - CHASSIS

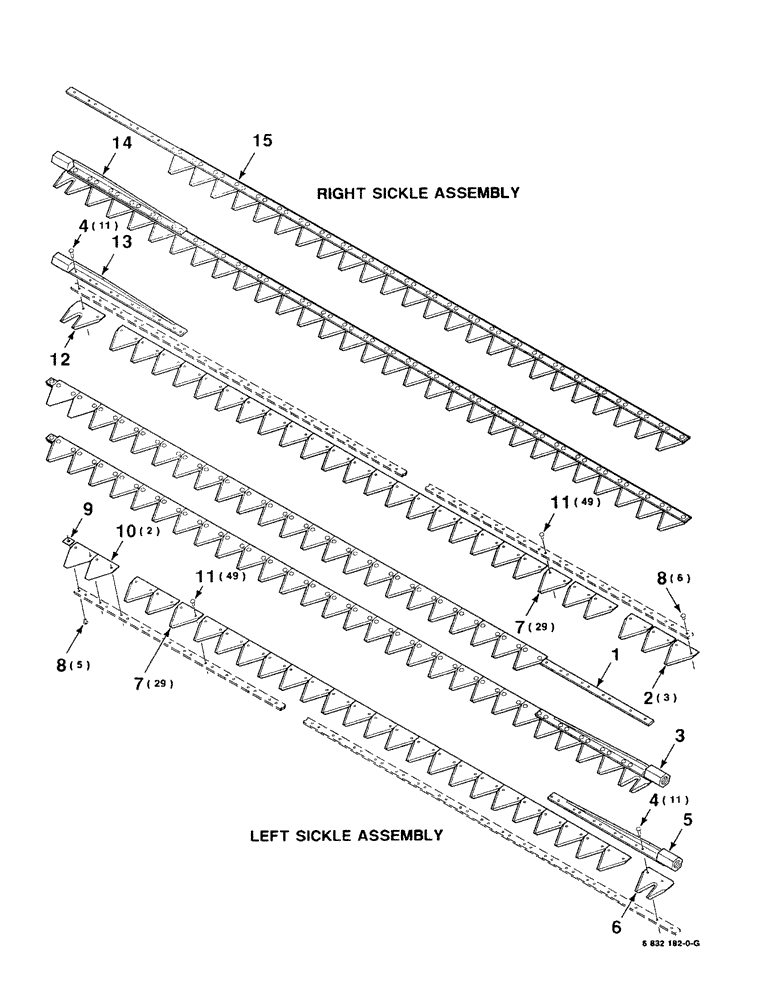

Схема запчастей Case IH 8820 - (3-14) - SICKLE ASSEMBLY, LEFT AND RIGHT, 16 FOOT RIVETED, SERRATED, HEAVY DUTY (09) - CHASSIS
11
7
4
8
3
15
4
10
14
11
7
13
1
2
5
9
12
8
6

Артикул

Название

Примечание

Количество

1

6835243

KNIFE ASSY

SICKLE ASM. COMPLETE - less head, left

1шт.

2

51200281

KNIFE SECTION

SECTION - sickle

3шт.

re 748210 sickle section. this part comes from production w/countersunk rivet. per hfi engr the sickle section vendor has a machine that can apply this rivet in prod. but for service, there probably is not a machine out in the field to do this, and normal field installation of the rivet laying loose in the countersunk hole when it is peened from the opposite side. For field repairs, engineer wants to use the oval head rivet and peen the rivet into the countersunk hole which will result in a secure file. p

1шт.

3

6832182

KNIFE ASSY

SICKLE ASM. COMPLETE - left, serrated

1шт.

4

64071

RIVET

#5-1/2 x 7/8 ROUND HEAD RIVET (Packaged 1 pound per box)

22шт.

5

6821078

HEAD

WA - sickle, left

1шт.

6

748145

KNIFE SECTION

SECTION - sickle, left, end

1шт.

7

49254

KNIFE SECTION

SECTION - sickle, top serrated (Packaged 25 per box)

58шт.

8

64469

RIVET,Oval Hd, .211" x 7/16"

#5-1/2 x 7/16 ROUND HEAD RIVET (Packaged 1 pound per box)

11шт.

9

6821052

SHIM

- wear

1шт.

10

51200279

KNIFE SECTION

SECTION - sickle

2шт.

11

990817R91

RIVET

#5-1/2 x 9/16 ROUND HEAD RIVET (Packaged 1 pound per box)

98шт.

12

51200278

KNIFE SECTION

SECTION - sickle, right end

1шт.

13

6821136

HEAD

WA - sickle, right

1шт.

14

6832232

KNIFE ASSY

SICKLE ASM. COMPLETE - right, serrated

1шт.

15

6835250

KNIFE ASSY

SICKLE ASM. COMPLETE - less head, right

1шт.

Выбрано товаров: 16
