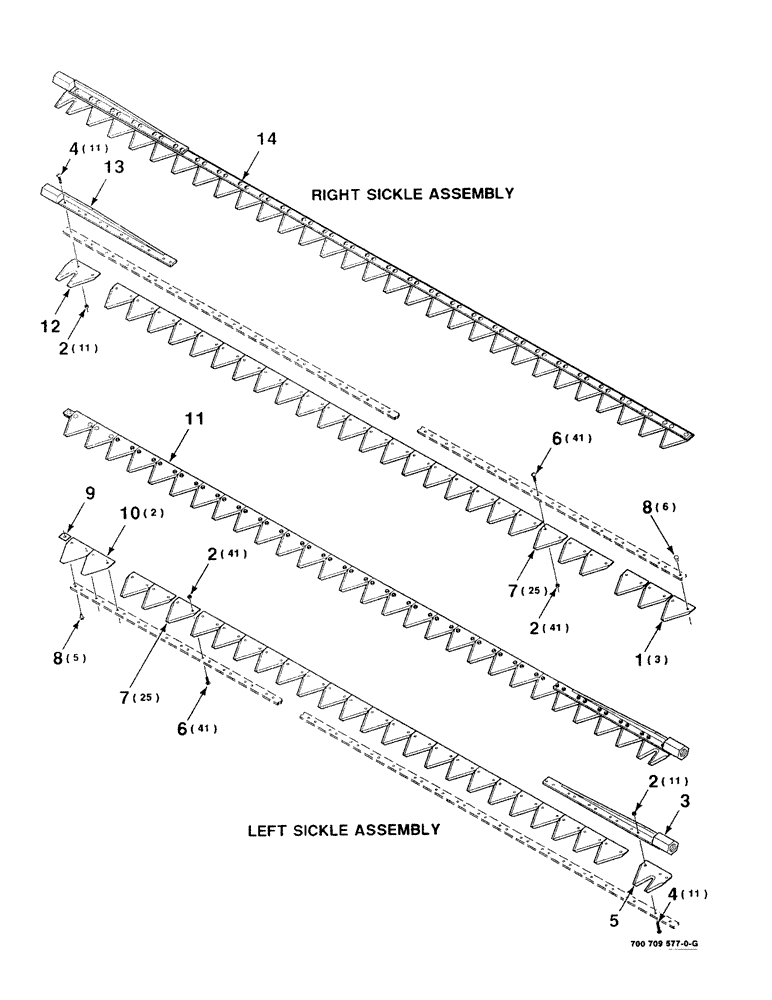

Запчасти Case IH 8820 (3-06) - SICKLE ASSEMBLY, LEFT AND RIGHT, 14 FOOT BOLTED, SERRATED (09) - CHASSIS

1

51200281

KNIFE SECTION

SECTION - sickle (Tapered holes)

3шт.

re 748210 sickle section. this part comes from production w/countersunk rivet. per hfi engr the sickle section vendor has a machine that can apply this rivet in prod. but for service, there probably is not a machine out in the field to do this, and normal field installation of the rivet laying loose in the countersunk hole when it is peened from the opposite side. For field repairs, engineer wants to use the oval head rivet and peen the rivet into the countersunk hole which will result in a secure file. p

1шт.

2

700705521

RIVET

#12-24 NUT (Packaged with bolts)

104шт.

3

6821078

HEAD

WA - sickle, left

1шт.

4

700709663

BOLT AND NUT

#12-24 x 7/8 BOLT (Includes item 2) (Box of 25 bolts and locknuts)

22шт.

5

700705462

KNIFE SECTION

SECTION - sickle, left, end

1шт.

6

700705296

BOLT AND NUT

#12-24 x 5/8 BOLT (Includes item 2) (Box of 25 bolts and locknuts)

82шт.

7

700705300

KNIFE SECTION

SECTION - sickle, top serrated .092 thick (Packaged 25 per box)

50шт.

8

64923

RIVET

#5-1/2 x 7/16 ROUND HEAD RIVET (Packaged 1 pound per box)

11шт.

9

6821052

SHIM

- wear

1шт.

10

V94766

SPARE PART

SECTION - sickle - blunt

2шт.

11

700709577

KNIFE ASSY

SICKLE ASM. COMPLETE - left, bolted

1шт.

12

700705463

KNIFE SECTION

SECTION - sickle, right end

1шт.

13

6821136

HEAD

WA - sickle, right

1шт.

14

700709578

KNIFE ASSY

SICKLE ASM. COMPLETE - right, bolted

1шт.
