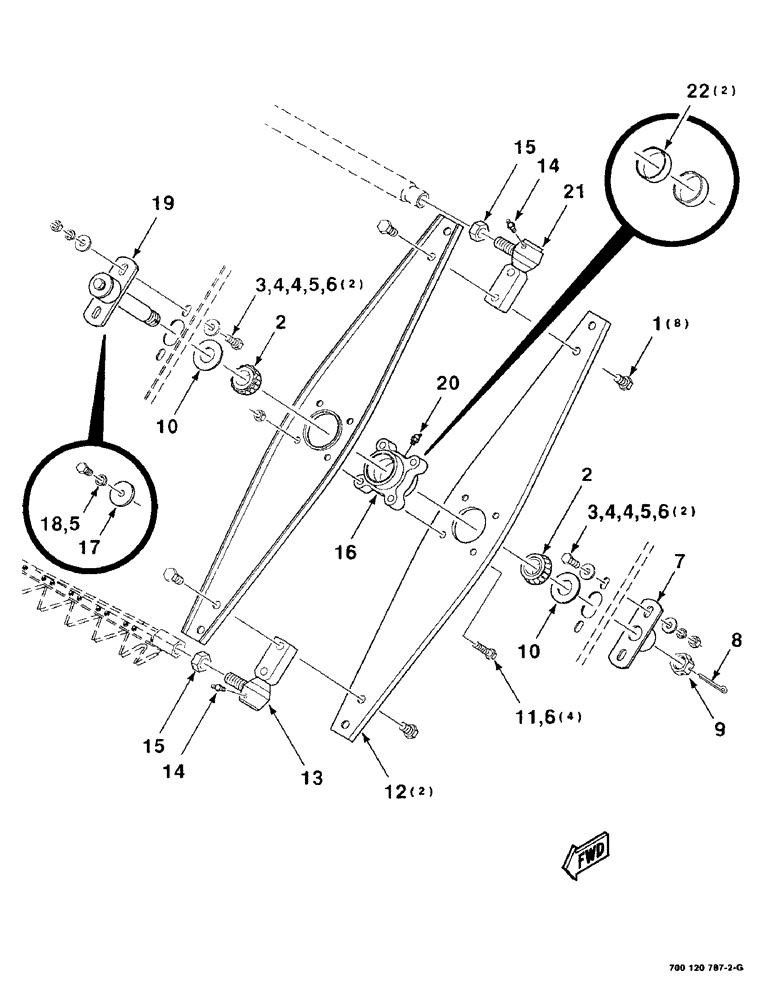

Запчасти Case IH 8820 (3-02) - SWAYBAR ASSEMBLY, LEFT (09) - CHASSIS

1

8701674

BOLT,Hex, 5/8" - 18 x 3/4", Gr 8

5/8-18 x 3/4 C GR8

8шт.

2

7714728

BEARING

CONE - bearing

2шт.

3

701276

HOUSING

1/2-20 x 1-1/2 C

4шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

8шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

6

704148

NUT

1/2-20 H

8шт.

7

6832497

LARGE PLATE

PLATE WA

1шт.

8

62422

PIN

5/32 x 1-3/4 COTTER PIN

1шт.

9

7774581

SLOTTED NUT

1-1/8-12 SHN GR2

1шт.

10

6832489

WASHER

2шт.

11

700709548

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-20 x 2-1/4 C

4шт.

12

1661983

BAR

SWAYBAR - half

2шт.

13

8025363

SOCKET

ASSEMBLY - left, lower (Includes item 14)

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

15

7774417

LOCK NUT

7/8-18 HJN GR2

2шт.

16

6832588

HUB

ASSEMBLY (Includes item 22)

1шт.

17

6832471

WASHER

WASHER - special

1шт.

18

703181

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 x 1 C

1шт.

19

6832661

PIN

ASSEMBLY (Includes items 17, 18 & 5)

1шт.

20

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 x 45 DEGREE ZERK

1шт.

21

8797102

SOCKET

ASSEMBLY - left, upper (Includes item 14)

1шт.

22

7710064

BEARING, CUP

CUP - bearing

2шт.
