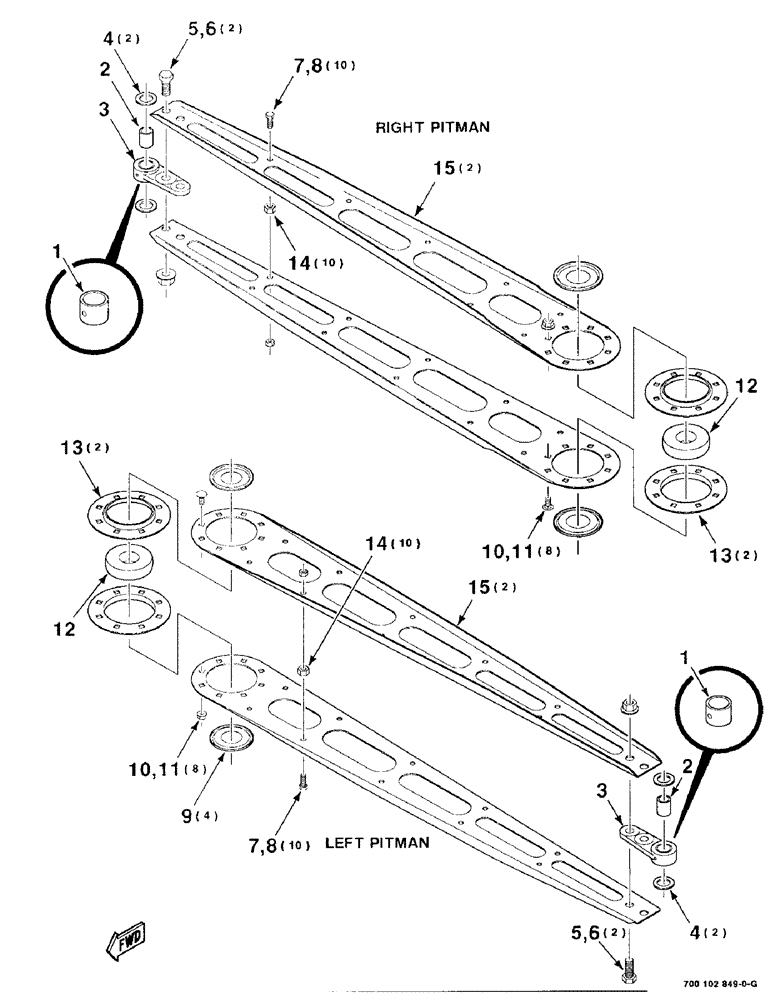

Запчасти Case IH 8820 (2-22) - PRIMARY PITMAN ASSEMBLY, LEFT AND RIGHT (09) - CHASSIS

1

8050536

NEEDLE BEARING

- needle

2шт.

2

8051021

RACE

- inner

2шт.

3

700102846

CONNECTING ROD

RETAINER - bearing (Without bearing)

2шт.

4

816132

WASHER

RACE - thrust

4шт.

5

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 x 1-1/2 C

4шт.

6

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

7

772376

BOLT,3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 C

20шт.

8

704023

NUT,3/8"-16, G5

3/8-16 H

20шт.

9

1707702

RING

- bearing

4шт.

10

111-374

CARRIAGE BOLT,Short NK, 3/8"-16 x 7/8", G5

3/8-16 x 7/8 RHSNB

16шт.

11

704247

NUT

3/8-16 HFSLN

16шт.

12

8050643

BALL BEARING,39.99mm ID x 90mm OD x 23mm W

2шт.

13

700703236

FLANGE

4шт.

14

704056

NUT

1/2-13 HJN GR2

20шт.

15

700102847

PITMAN

- half

4шт.
