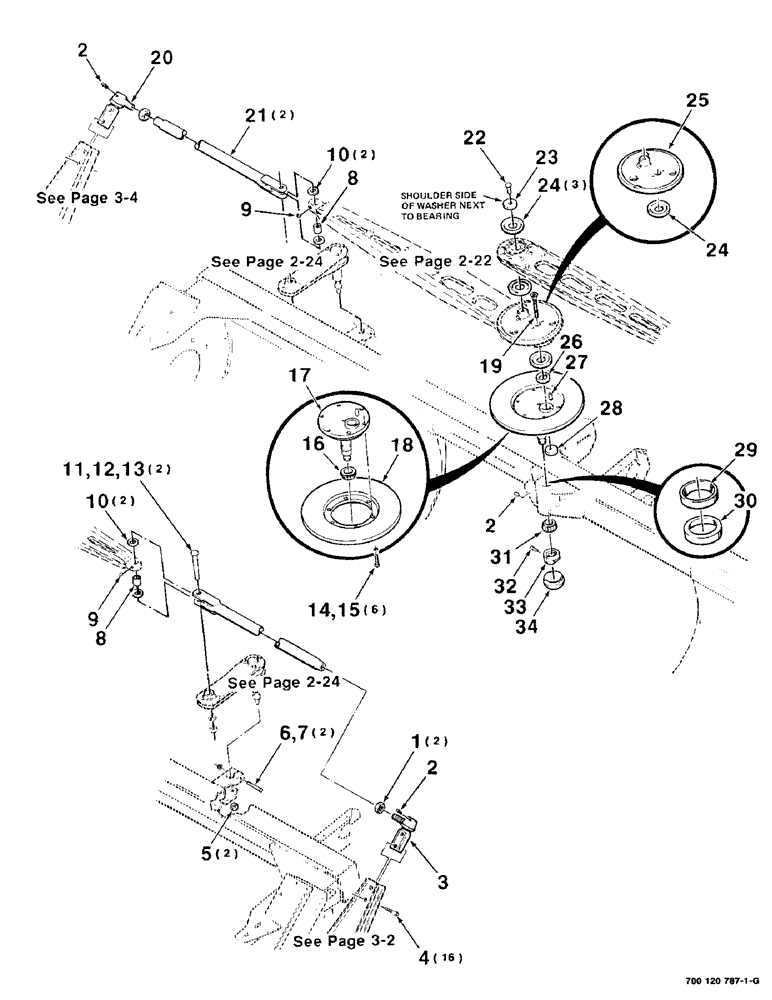

Запчасти Case IH 8820 (2-20) - PITMAN AND SICKLE DRIVE ASSEMBLY, DOUBLE (09) - CHASSIS

1

7774417

LOCK NUT

7/8-14 HEX JAM NUT

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

3

8025363

SOCKET

ASSEMBLY - left (Includes item 2)

1шт.

4

8701674

BOLT,Hex, 5/8" - 18 x 3/4", Gr 8

5/8-18 x 3/4 C GRADE 8

16шт.

5

704130

NUT,5/8"-11, G5

5/8-11 H

2шт.

6

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 C

2шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

8

8051021

RACE

BEARING - race, inner

2шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 x 90 DEGREE ZERK

2шт.

10

816132

WASHER

RACE - thrust

4шт.

11

703488

SCREW

3/4-10 x 4 C

2шт.

12

705111

LOCK WASHER,3/4"

3/4"

2шт.

13

704528

NUT,3/4"-10, G5

3/4-10 H

2шт.

14

7701568

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 x 1-1/4 C

6шт.

15

705020

LOCK WASHER

5/16"

6шт.

16

8050528

ROLLER BEARING

BEARING - cone

1шт.

17

6832265

SPINDLE

- flywheel

1шт.

18

6832653

SHEAVE

- flywheel

1шт.

19

8701740

HEX SOC SCREW,Flat Hd, CSK, 1/2" - 20 x 3 1/2"

SCREW - special

1шт.

20

8797102

SOCKET

ASSEMBLY - right (Includes item 2)

1шт.

21

1661976

TUBE

- Pitman, secondary (14 foot)

2шт.

700108088

TUBE,1286 mm Length

- Pitman, secondary (16 foot)

2шт.

22

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

1шт.

23

6832471

WASHER

WASHER - Pitman

1шт.

24

1707702

RING

- bearing

4шт.

25

6832406

CRANK

- double, Pitman

1шт.

26

1708056

WASHER

- neoprene

1шт.

27

761494

KEY

1/4 x 1/4 x 1-3/16 KEY - special

1шт.

28

6832695

WASHER

- special

1шт.

29

453012R1

BEARING CUP

CUP - bearing, upper

1шт.

30

710459

CUP

- bearing, lower

1шт.

31

710475

ROLLER BEARING

BEARING - cone

1шт.

32

7773245

BOLT,5/16" - 18 x 1", Full Thd

5/16-18 x 1 HSHCS SPL

1шт.

33

700117837

CLAMP

NUT - clamp

1шт.

34

26674

CAP

- hub

1шт.
