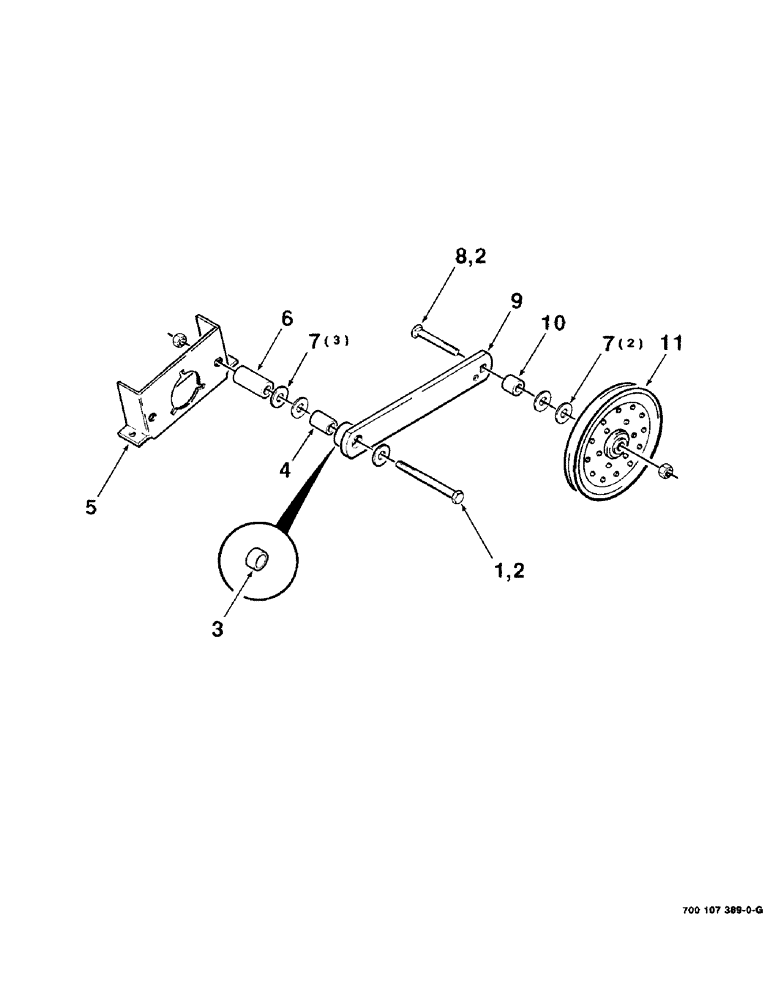

Запчасти Case IH 8820 (2-18) - REEL DRIVE TIGHTENER ASSEMBLY (09) - CHASSIS

1

873497

HARDWARE

1/2-13 x 5-1/2 C

1шт.

2

86516876

COVER

1/2-13 H

2шт.

3

740217

BUSHING

- Oilite

1шт.

4

1661945

SPACER

1шт.

5

700107390

SUPPORT

- reel, left

1шт.

6

1661946

SPACER

1шт.

7

700709605

WASHER,1/2"

1/2 WIDE PLAIN WASHER

5шт.

8

7770076

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 RHSNB

1шт.

9

1661943

ARM

WA - tightener (Includes item 3)

1шт.

10

6825012

TUBE,25.4 mm OD, 31.75 mm Length

SPACER

1шт.

11

54510

FRONT IDLER

IDLER - flat

1шт.
