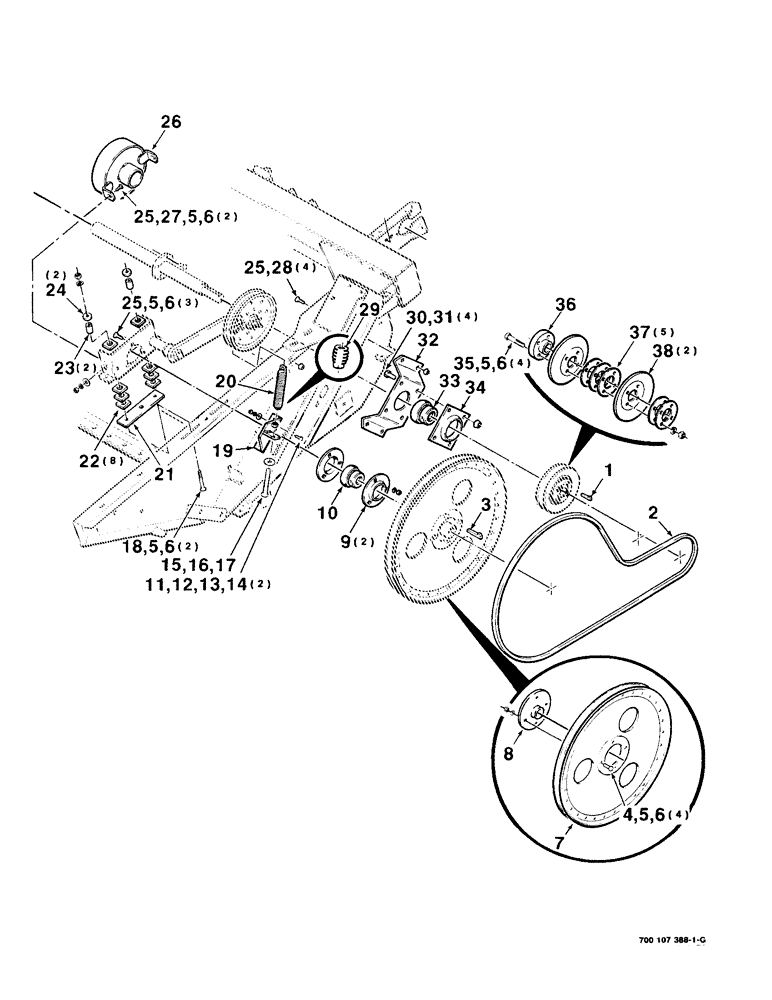

Запчасти Case IH 8820 (2-16) - REEL DRIVE ASSEMBLY (09) - CHASSIS

1

61622

BUCKET TOOTH KEY

1/4 x 1/4 x 1-1/2 GIB KEY

1шт.

2

1710326

BELT,104.74" L

V-BELT 104.74" L

1шт.

3

61572

BUCKET TOOTH KEY

3/8 x 3/8 x 1-3/4 GIB KEY

1шт.

4

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

5

705038

CONTROL VALVE

3/8"

15шт.

6

704023

NUT,3/8"-16, G5

3/8-16 H

15шт.

7

51200248

SHEAVE

- reel drive

1шт.

8

6181499

WASHER

HUB - reel drive

1шт.

9

617863R1

FLANGED BEARING

- bearing

2шт.

10

713198

BALL BEARING

BEARING - spherical

1шт.

11

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

12

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

13

705020

LOCK WASHER

5/16"

2шт.

14

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

15

873455

SCREW,Hex, 1/2" - 13 x 4", Gr 5, Full Thd

1/2-13 x 4 FTC

1шт.

16

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

17

704031

NUT

1/2-13 H

1шт.

18

7770506

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 RHSNB

2шт.

19

1661948

ANCHOR

- spring

1шт.

20

6189971

SPRING

ASSEMBLY (Includes item 29)

1шт.

21

700108140

STRAP

- shim

1шт.

22

700108138

SHIM

- reel support

8шт.

23

700108137

TUBE,10.747 mm ID, 0.75" OD, 33 mm Length

- spacer

2шт.

24

6178628

WASHER

2шт.

25

700047

BOLT

3/8-16 x 1 RHSNB

9шт.

26

700108135

SHIELD

- reel

1шт.

27

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

28

704247

NUT

3/8-16 HFSLN

4шт.

29

6189989

PLUG

- spring

1шт.

30

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

4шт.

31

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

4шт.

32

1661938

SUPPORT

- bearing, auger

1шт.

33

51318

BEARING

- spherical

1шт.

34

163717

FLANGE

- bearing

1шт.

35

700708268

HARDWARE

3/8-16 x 2 C GR8

4шт.

36

6574859

HUB

- vari sheave

1шт.

37

1661923

SHIM

- spacer

5шт.

38

338244

SHEAVE

- half

2шт.
