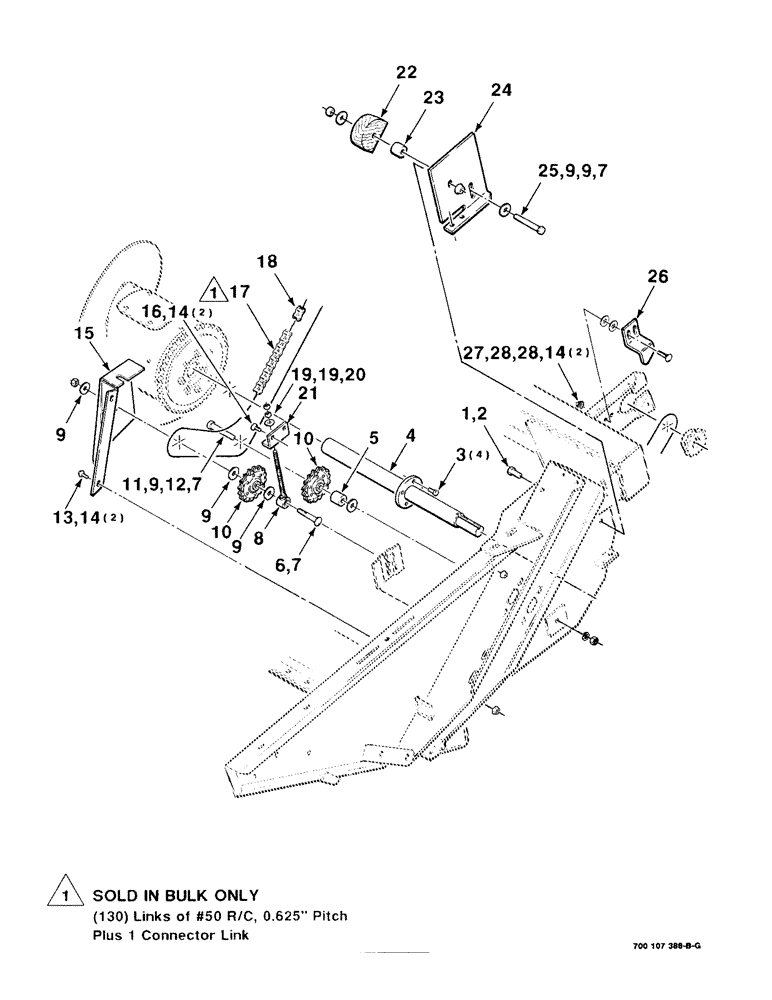

Запчасти Case IH 8820 (2-14) - AUGER DRIVE ASSEMBLY (09) - CHASSIS

1

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

1шт.

2

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

1шт.

3

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

4шт.

4

1661952

SHAFT

- auger drive

1шт.

5

6833164

SPACER

- idler

1шт.

6

7770712

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 RHSNB

1шт.

7

86516876

COVER

1/2-13 H

3шт.

8

6833073

BOLT,3/8" - 16 x 7"

3/8-16 DRAWBOLT

1шт.

9

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENDED PLAIN WASHER

6шт.

10

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

2шт.

11

703751

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2-13 x 3-1/4 C

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

13

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

14

704239

FRONT AXLE

5/16-18 HFSLN

6шт.

15

1661951

SHIELD

- drive, auger

1шт.

16

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

17

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

18

1310D

LINK

- connector, #50 R/C

1шт.

19

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

1шт.

21

1661937

SUPPORT

BRACKET - support

1шт.

22

760728

BLOCK ASSY.

BLOCK - tightener

1шт.

23

159590

SPACER

1шт.

24

700121405

PLATE

BRACKET - tightener

1шт.

25

7701600

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 x 3-3/4 C

1шт.

26

700101140

GUIDE

- chain

1шт.

27

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

28

705525

WASHER

5/16 HARDENED PLAIN WASHER

4шт.
