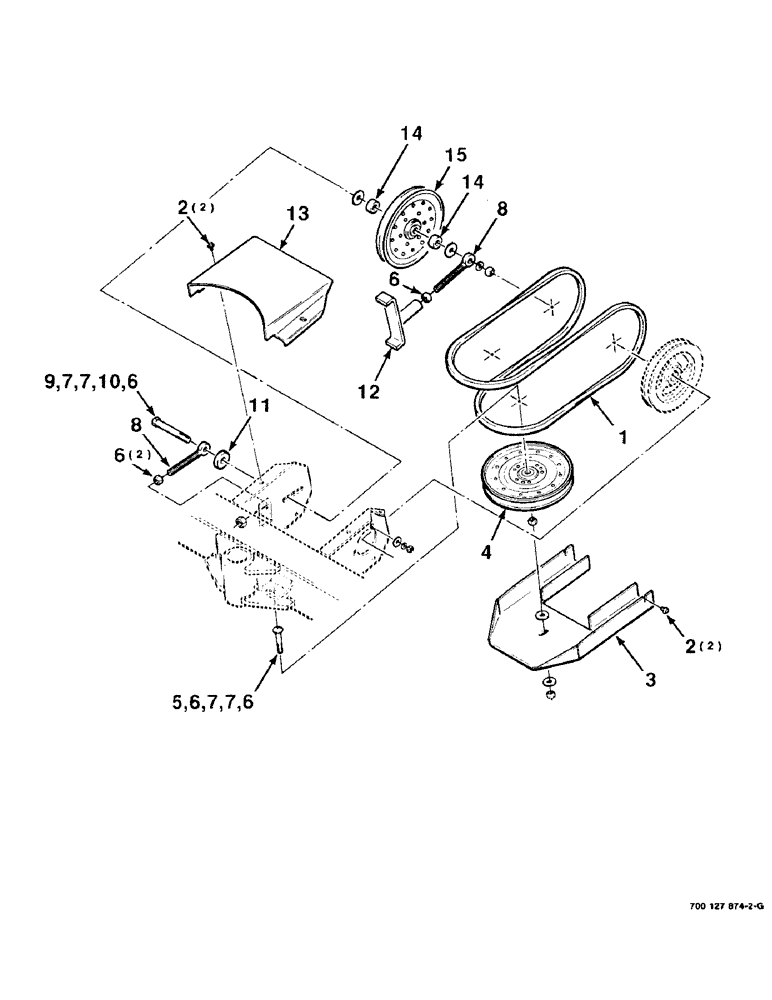

Запчасти Case IH 8820 (2-12) - SICKLE DRIVE ASSEMBLY (09) - CHASSIS

1

1710292

BELT,95.99" L

V-BELT 95.99" L

1шт.

2

772525

WASHER

5/16-18 x 1/2 HWHTCTS

4шт.

3

1661979

SHIELD

- inner

1шт.

4

7054281

PULLEY

SHEAVE - idler

1шт.

5

7770704

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 RHSNB

1шт.

6

704031

NUT

1/2-13 H

6шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

8

51200284

BOLT (MACHINE)

1/2-13 x 5 DRAWBOLT

2шт.

9

703223

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 C

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

1661850

SPACER

1шт.

12

700100913

BASE

- tightener

1шт.

13

1661980

SHIELD

- drive, sickle

1шт.

14

6235071

BUSHING

SPACER

2шт.

15

1710334

PULLEY

SHEAVE - idler

1шт.
