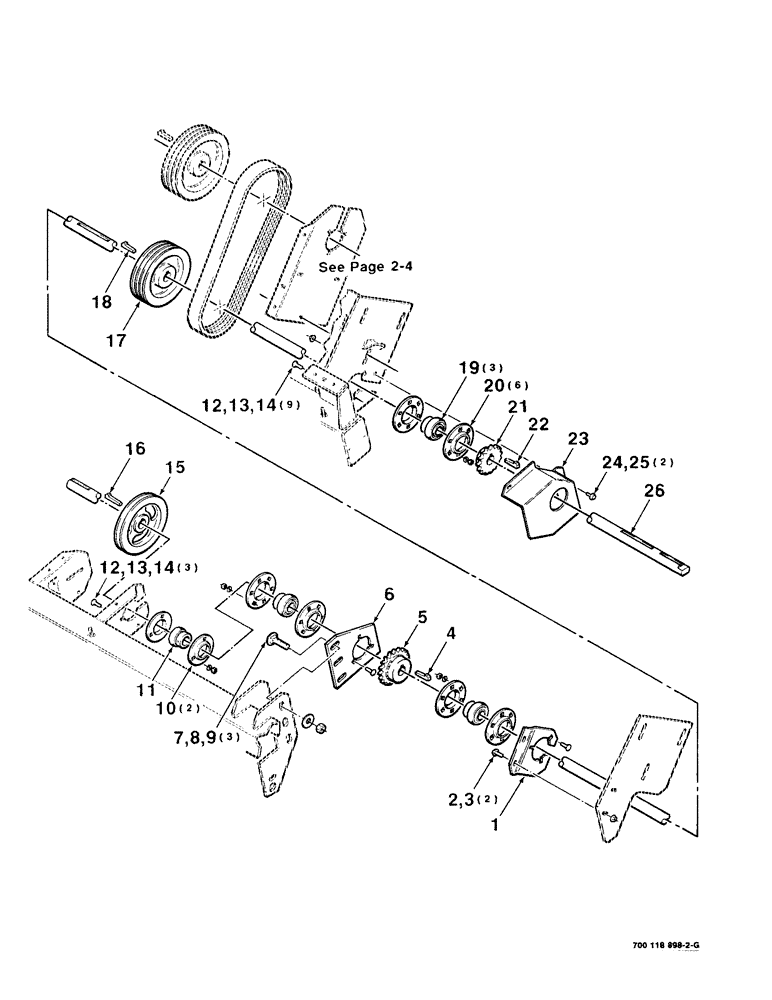

Запчасти Case IH 8820 (2-08) - SECONDARY DRIVE ASSEMBLY, 14 FOOT (09) - CHASSIS

1

700117807

SUPPORT

- bearing

1шт.

2

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 x 1 HWHMS

2шт.

3

704247

NUT

3/8-16 HFSLN

2шт.

4

761213

KEY

5/16 x 5/16 x 1-1/2 GIB KEY

1шт.

5

700118927

SPROCKET ASSY.

SPROCKET - 21 tooth

1шт.

6

6830624

PLATE

MOUNTING - bearing

1шт.

7

700709988

BOLT,Round, 3/4" - 10 x 1 1/2", Grade 5

3/4-10 x 1-1/2 RHSNB

3шт.

8

705566

WASHER

3/4 HARDENED PLAIN WASHER

3шт.

9

704528

NUT,3/4"-10, G5

3/4-10 H

3шт.

10

50534

FLANGED BEARING

- bearing

2шт.

11

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

1шт.

12

700047

BOLT

3/8-16 x 1 RHSNB

12шт.

13

705038

CONTROL VALVE

3/8"

12шт.

14

704023

NUT,3/8"-16, G5

3/8-16 H

12шт.

15

6821425

SHEAVE

1шт.

16

761379

BUCKET TOOTH KEY

3/8 x 3/8 x 1-3/4 GIB KEY

1шт.

17

700118924

SHEAVE

- 3 groove

1шт.

18

761205

KEY

5/16 x 5/16 x 2 GIB KEY

1шт.

19

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

3шт.

20

712612

FLANGE

- bearing

6шт.

21

85886

SPROCKET

- 15 tooth

1шт.

22

61424

KEY

1/4 x 1/4 x 1-1/4 GIB KEY

1шт.

23

700118922

SHIELD

- end

1шт.

24

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

2шт.

26

700118928

SHAFT

- jack

1шт.
