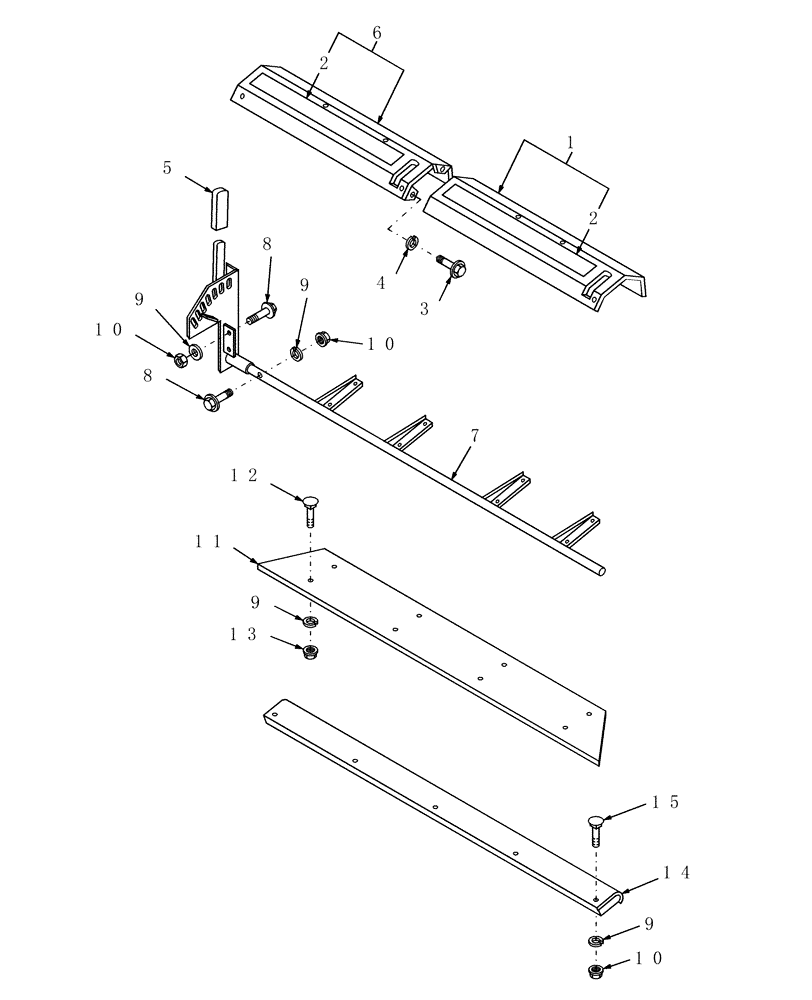

Запчасти Case IH HDX181 (004) - HEADER SHIELDING, REAR (58) - ATTACHMENTS/HEADERS

1

86632410

COVER ASSY

Top, LH

1шт.

Includes: Ref. 2 & 16

1шт.

2

263636

ANTI-SKID STRIP

Safety, 4" x 55"

1шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

492-11031

LOCK WASHER,5/16"

4шт.

5

698486

HANDLE GRIP

1шт.

6

86632428

COVER ASSY

Top, RH

1шт.

Includes: Ref. 2

1шт.

7

86632431

PIPE ASSY.

1шт.

8

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

13шт.

10

425-286

FLANGE NUT,Flg, 3/8"-16, G5

10шт.

11

86632415

GATE ASSY

1шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

13

425-285

FLANGE NUT,Flg, 5/16"-18, G5

8шт.

14

86632384

FLOOR

1шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

5шт.

16

237109

DECAL

Roll Pressure

1шт.

16

601634

DECAL

Roll Pressure, French

1шт.

16

9804251

DECAL

Roll Pressure, Spanish

1шт.

16

84417339

DECAL

Roll Pressure, Russian

1шт.
