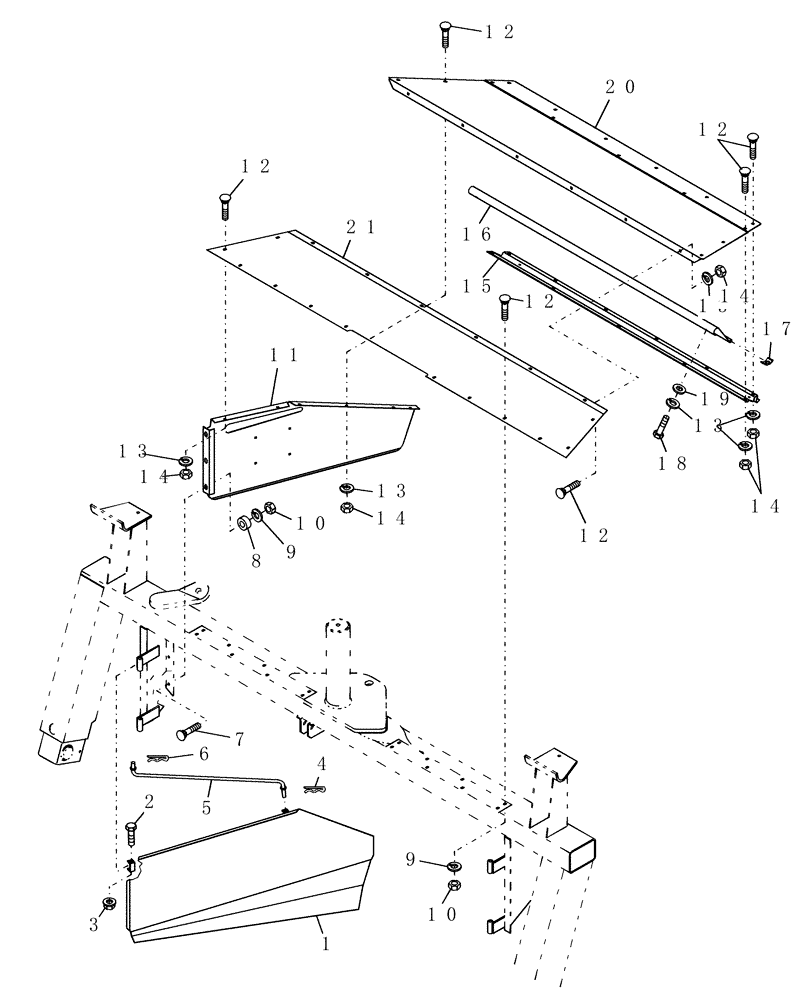

Запчасти Case IH HDX181 (004[A]) - WINDROW SHIELDS (58) - ATTACHMENTS/HEADERS

1

86625347

SHIELD

RH

1шт.

1

86625345

SHIELD

LH

1шт.

2

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

3

232-4148

NUT,1/2"-13, GC

4шт.

4

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

5

86510969

ROD

2шт.

6

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

14шт.

8

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

6шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

10

425-106

NUT,3/8"-16, Cl 5

14шт.

11

86626497

SHIELD

RH

1шт.

11

86626499

SHIELD

LH

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

25шт.

13

492-11031

LOCK WASHER,5/16"

27шт.

14

425-105

NUT,5/16"-18, G5

25шт.

15

86510976

SUPPORT

1шт.

16

86626729

SHIELD

Fluffing

1шт.

17

128484

WASHER

2шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

495-21038

WASHER,5/16"

2шт.

20

86626731

COVER

1шт.

21

86626727

COVER

1шт.
