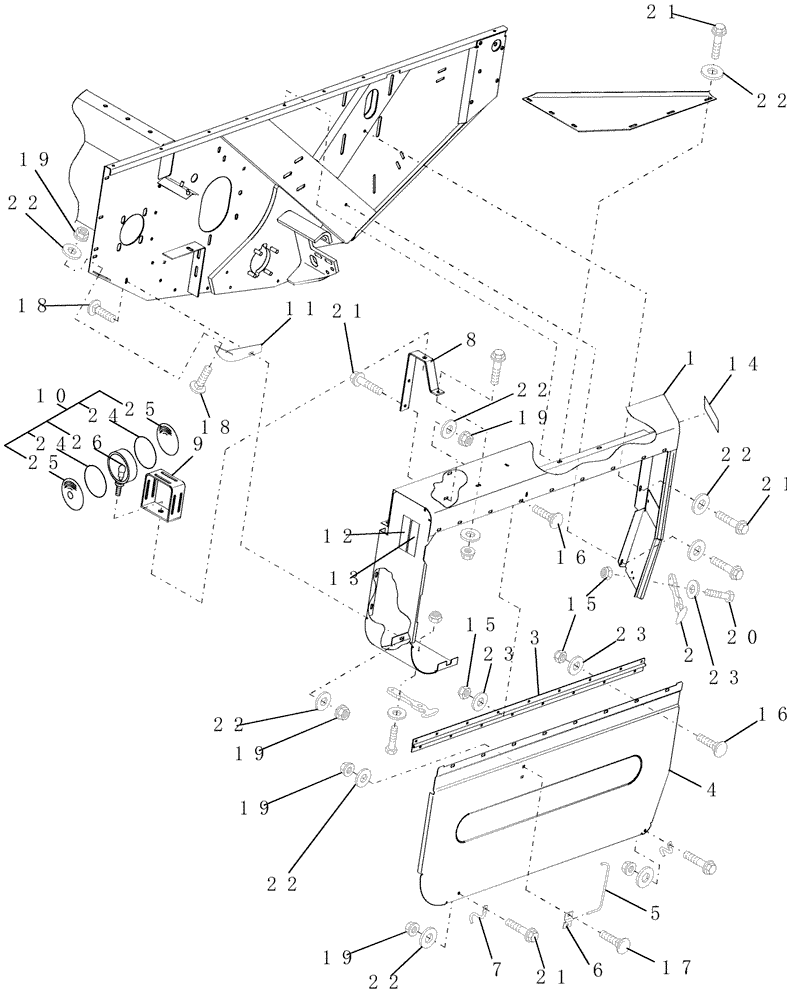

Запчасти Case IH HDX181 (003[2]) - HEADER SHIELDS, RIGHT SIDE (58) - ATTACHMENTS/HEADERS

1

86634224

SHIELD

RH

1шт.

Includes Decals, Ref. 12 - 14

1шт.

2

86000448

LATCH

Rubber

2шт.

3

86622712

HINGE

1шт.

4

86627137

DOOR ASSY.

RH

1шт.

5

173194

HOOK

1шт.

6

173195

BRACKET

1шт.

7

9801962

HOOK

2шт.

8

86554704

SUPPORT

1шт.

9

86631247

BRACKET

1шт.

10

86621618

WARNING LIGHT

Amber, Round

1шт.

11

86632367

SUPPORT

1шт.

12

86547783

REFLECTOR,Tape, Red Orange

1шт.

13

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

14

86547782

REFLECTOR,YELLOW

Yellow Reflective

1шт.

15

280129

NUT,1/4"-20

21шт.

16

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

17шт.

17

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

2шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

19

425-285

FLANGE NUT,Flg, 5/16"-18, G5

10шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

21

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

23

495-11028

WASHER,1/4", SAE

21шт.

24

86627435

O-RING,3.484" ID x 0.139" Width

2шт.

25

86622240

LENS

Amber

2шт.

26

529068

BULB,#1156, 12V, 21W

1шт.
