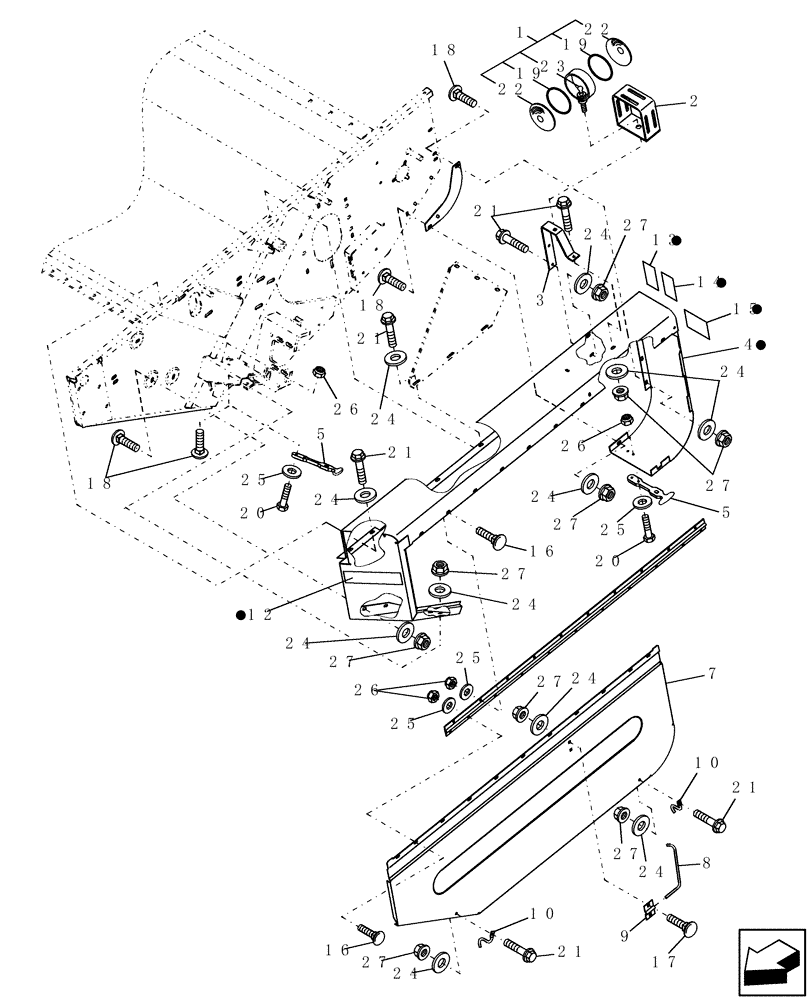

Запчасти Case IH HDX181 (002[2]) - HEADER SHIELDS, LEFT SIDE (58) - ATTACHMENTS/HEADERS

1

86621618

WARNING LIGHT

Amber, Round, 12V

1шт.

2

86631247

BRACKET

Lamp Shield

1шт.

3

86554704

SUPPORT

Lamp

1шт.

4

86634223

SHIELD

w/Decals

1шт.

5

86000448

LATCH

2шт.

6

86622710

HINGE

Piano

1шт.

7

86626581

DOOR

LH

1шт.

8

173194

HOOK

1шт.

9

173195

BRACKET

Hinge

1шт.

10

9801962

HOOK

2шт.

11

86631451

FILLER

1шт.

12

86547782

REFLECTOR,YELLOW

Yellow Reflective

1шт.

13

86547783

REFLECTOR,Tape, Red Orange

1шт.

14

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

15

86622073

WARNING DECAL

English

1шт.

15

86622074

WARNING DECAL

WARNING, French

1шт.

15

86622075

WARNING DECAL

Caution, Spanish

1шт.

16

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

21шт.

17

434-510

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5

2шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

9шт.

19

86627435

O-RING,3.484" ID x 0.139" Width

2шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

21

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

22

86622240

LENS

2шт.

23

529068

BULB,#1156, 12V, 21W

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

21шт.

25

495-11028

WASHER,1/4", SAE

25шт.

26

280129

NUT,1/4"-20

25шт.

27

425-285

FLANGE NUT,Flg, 5/16"-18, G5

13шт.
