Запчасти Case IH HDX181 (001) - HEADER PUSH BAR, JACK & SKID SHOES (58) - ATTACHMENTS/HEADERS

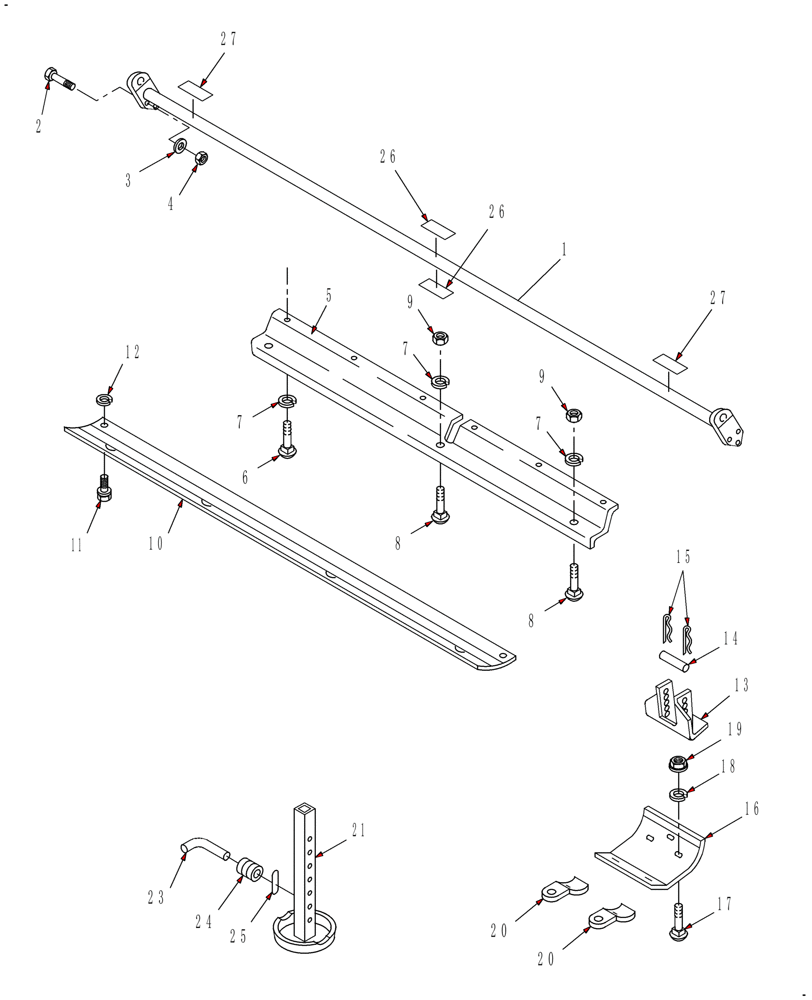

Схема запчастей Case IH HDX181 - (001) - HEADER PUSH BAR, JACK & SKID SHOES (58) - ATTACHMENTS/HEADERS
17
27
20
1
20
8
2
14
12
4
16
11
15
7
7
27
25
24
26
13
23
8
18
3
9
26
9
10
19
5
6
7
21

Артикул

Название

Примечание

Количество

1

86615377

BAR

Push, 12' Header

1шт.

1

86615375

BAR

Push, 14' Header

1шт.

1

86615373

BAR

Push, 16' Header

1шт.

1

86615371

BAR

Push, 18' Header

1шт.

2

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

4

425-108

NUT,1/2" - 13, Gr 5

6шт.

5

86632388

SHIELD

1шт.

6

87346

SELF-TAP SCREW,Hex Hd, 5/16" x 1/2"

6шт.

7

492-11031

LOCK WASHER,5/16"

9шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

3шт.

9

425-285

FLANGE NUT,Flg, 5/16"-18, G5

3шт.

10

86527458

PLATE

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

13

9804197

SUPPORT

(2) 12', (4) 14', 16' & 18' Headers

1шт.

14

626183

PIN,15.88mm OD x 149.22mm L

(2) 12', (4) 14', 16' & 18' Headers

1шт.

15

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair, 5/32" x 2-3/4", (4) 12', (8) 14', 16', & 18' Headers

1шт.

16

86615875

SHOE

(2) 12', (4) 14', 16' & 18' Headers

1шт.

17

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

(6) 12', (12) 14', 16' & 18' Headers

1шт.

18

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

19

425-288

FLANGE NUT,Flg, 1/2"-13, G5

(6) 12' Headers, (12) 14', 16' & 18' Headers

1шт.

20

638660

CLIP

Shoe, (4) 12', (8) 14', 16' & 18' Headers

1шт.

21

86573071

JACK,573.60 mm L

Jack

1шт.

23

86611330

PIN,16.56mm OD

Jack

1шт.

24

26538

SPRING

1шт.

25

38-1820

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

26

166127

DECAL

Attention, Do Not Use... For Lifting...

2шт.

26

601662

DECAL

Attention, French

2шт.

26

9804246

DECAL

Attention, Spanish

2шт.

27

791766

DECAL

To Avoid Damage...

2шт.

Выбрано товаров: 31
