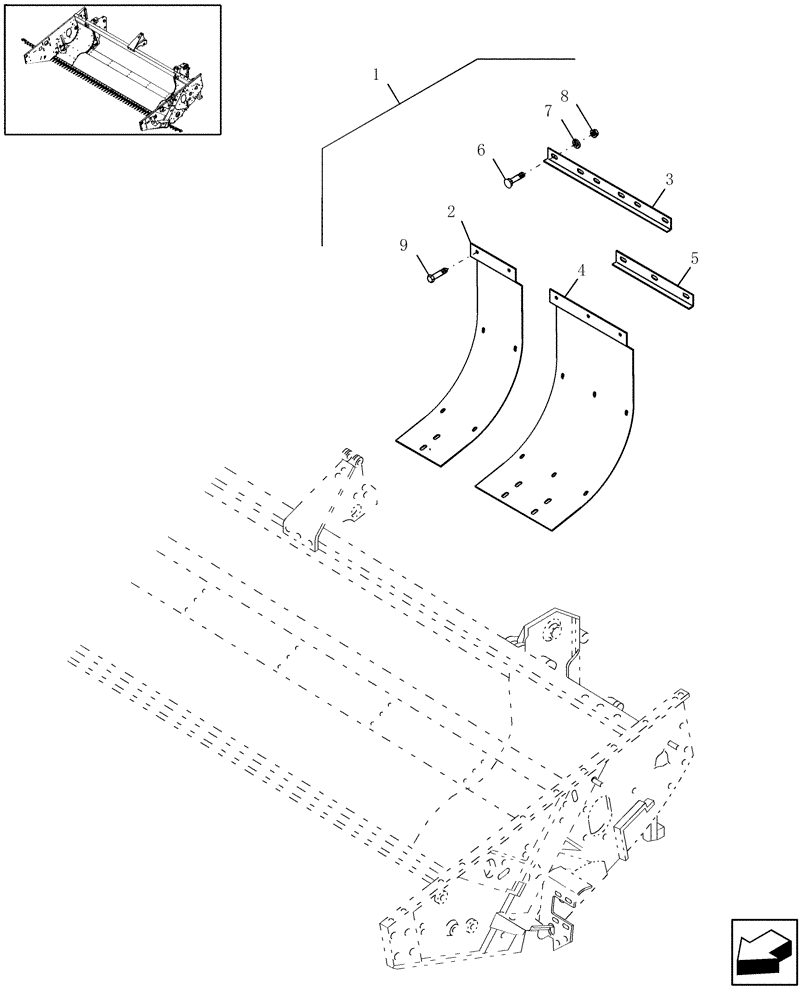

Запчасти Case IH HDX162 (20.18.02) - HEADER CLOSURE KIT (58) - ATTACHMENTS/HEADERS

1

86643154

KIT

Header Closure. Includes: Ref. 2 - 9

1шт.

2

86632302

FLOOR

Extension

2шт.

3

86632299

ANGLE

4шт.

4

86632297

FLOOR

Extension

2шт.

5

86632295

ANGLE

4шт.

6

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

30шт.

7

492-11031

LOCK WASHER,5/16"

30шт.

8

425-285

FLANGE NUT,Flg, 5/16"-18, G5

30шт.

9

87887

SELF-TAP SCREW,Hex Hd, 5/16" x 3/4"

10шт.
