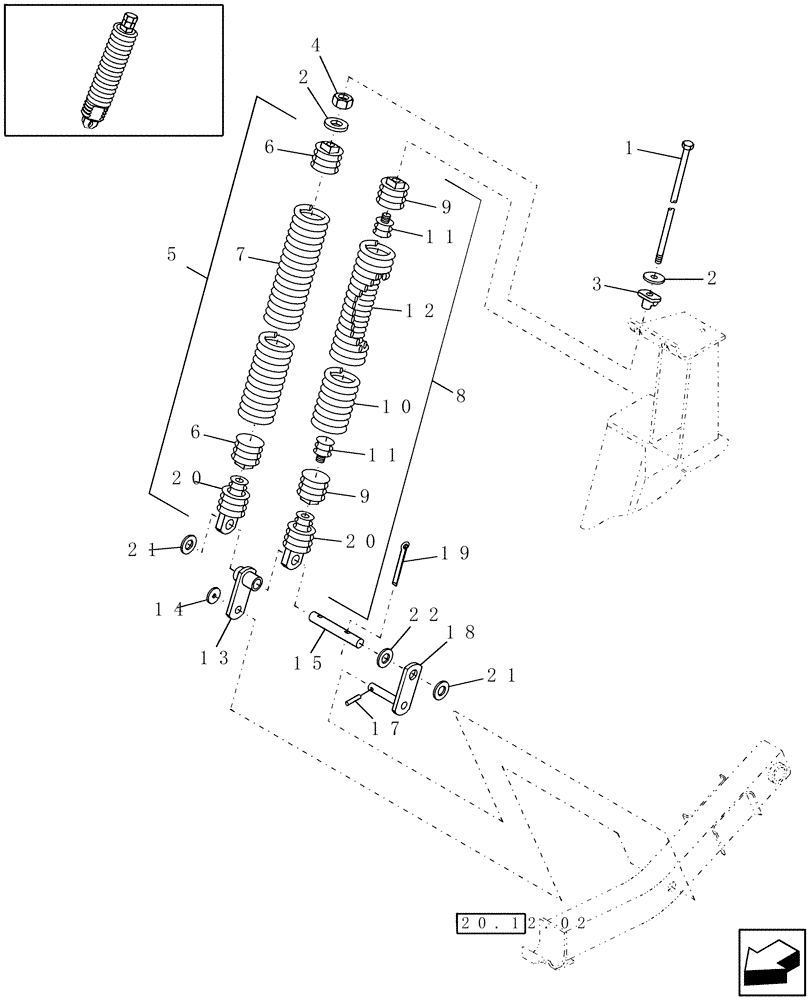

Запчасти Case IH HDX162 (20.12.04) - HEADER ATTACHING, SCX100 (58) - ATTACHMENTS/HEADERS

1

86515504

BOLT

4шт.

2

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

8шт.

3

694420

PIVOT

Spring

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

86565277

SPRING

14' Header Only. Includes: Ref. 6 , 7 & 20

2шт.

6

9846359

SPRING NUT

Spring

4шт.

7

86511080

SPRING

2шт.

8

86558521

SPRING

(2) 14', (4) 16' & 18' Header, Includes: Ref. 9, 10, 11, 12 & 20

1шт.

9

621922

SPRING NUT

Spring

4шт.

10

86511080

SPRING

2шт.

11

86527333

SPRING NUT

Spring

4шт.

12

86527302

SPRING

Extension

2шт.

13

86558535

HUB

2шт.

14

495-11106

WASHER,1", SAE

2шт.

15

86558540

PIN

2шт.

16

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

14' Header Only

2шт.

16

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

16' & 18' Header Only

4шт.

17

435-1828

GROOVED PIN,1/4" x 1 3/4", Type A

2шт.

18

86558538

CONNECTING LINK

2шт.

19

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.

20

86558519

SPRING NUT

Spring

4шт.

21

47704

WASHER,35.7mm ID x 50.8mm OD x 5mm Thk

2шт.

22

771867

SPACER

1шт.
