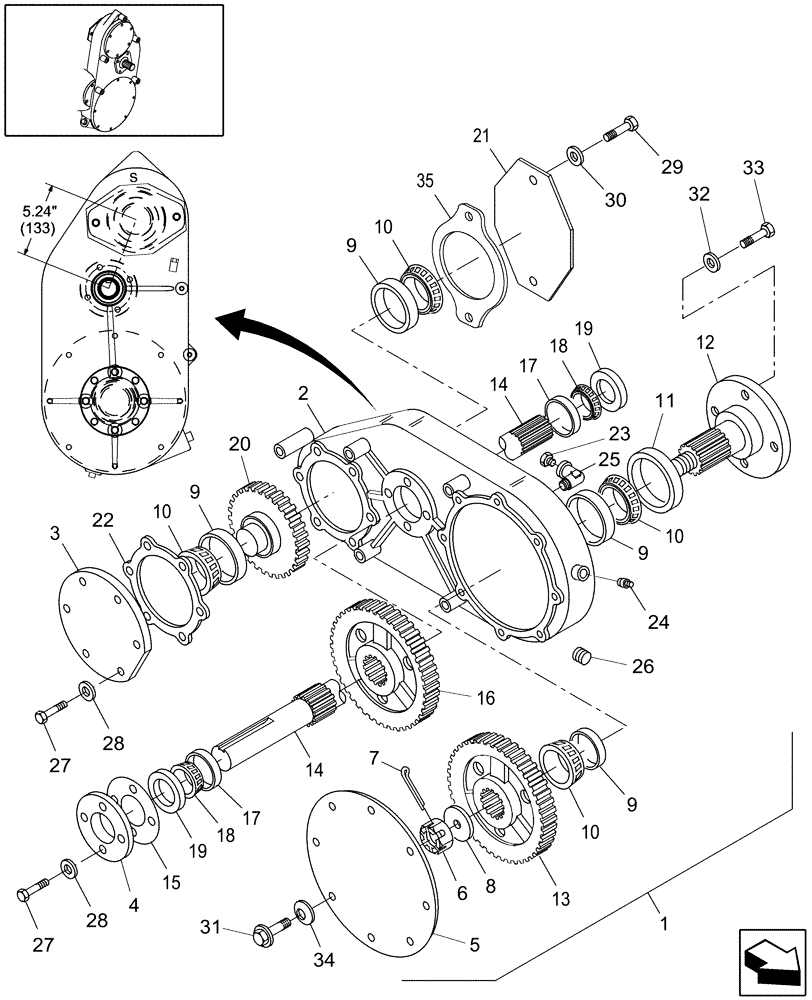

Запчасти Case IH HDX161 (007[1]) - GEARBOX COMPONENTS (58) - ATTACHMENTS/HEADERS

ref

See Figure Note Before Ordering Components

1шт.

1

87567906

GEARBOX

Includes: Ref. 2 thru 33, Casting Has a "S" Above Motor Mount.

1шт.

12' Only

1шт.

Use This Gearbox Only with a 44cc (2.65 CU IN) Header Drive Motor

1шт.

1

87567904

GEARBOX

Includes: Ref. 2 thru 33, Casting Has a "S" Above Motor Mount.

1шт.

14', 16', 18' Only

1шт.

Use This Gearbox Only with a 44cc (2.65 CU IN) Header Drive Motor

1шт.

87567904R

REMAN-GEARBOX

HDX141 14 FT. SICKLE HEADER, HDX161 16 FT. SICKLE HEADER, Both (10/01-12/02), HDX121 12 FT. SICKLE HEADER, HDX181 18 FT. SICKLE HEADER, Both (11/01-12/02)

1шт.

87567904C

CORE-GEARBOX

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Casting Has a "S" Above Motor Mount.

1шт.

3

86623940

CAP

1шт.

4

247491

COVER

Cap

1шт.

5

86632444

COVER

1шт.

6

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

7

80750

COTTER PIN,1/8" x 1 1/8"

1шт.

8

56867

WASHER

Heat Treated

1шт.

9

175508

BEARING CUP,59.16mm OD x 11.94mm W

4шт.

10

175507

BEARING CONE,35 mm ID x 16.764 mm

4шт.

11

694956

SEAL

1шт.

12

9847669

SHAFT

1шт.

13

87051773

GEAR,48T External, 23T Spline

Spur, 48T

1шт.

14

86642894

SHAFT

12' Headers, Keyway on one end, Splines on other end

1шт.

14

86555379

SHAFT

14', 16' & 18' Headers, Splines on both ends

1шт.

15

136804

SHIM,.003" Thk

1шт.

15

136803

SHIM,.005" Thk

1шт.

15

136802

SHIM,.0075" Thk

1шт.

15

86617096

SHIM

.018" Thk

1шт.

16

87051765

GEAR,48T External, 23T Spline

48T

1шт.

17

36723

BEARING CUP,59.16mm OD x 11.81mm W

2шт.

18

36726

BEARING CONE,31.75mm ID x 16.76mm W

2шт.

19

701519

OIL SEAL

2шт.

20

86596518

GEAR

14T

1шт.

21

86632445

COVER

1шт.

22

688989

SHIM,.003" Thk

1шт.

22

688990

SHIM,.005" Thk

1шт.

22

688991

SHIM,.007" Thk

2шт.

22

86608804

SHIM

.018" Thk

1шт.

23

572820

BREATHER

Breather

1шт.

24

80781

PLUG,3/8" - 18 NPT

1шт.

25

86511898

ELBOW

90°, Street, Brass

1шт.

26

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

27

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

29

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

31

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

32

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

33

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

35

763604

GASKET

1шт.
