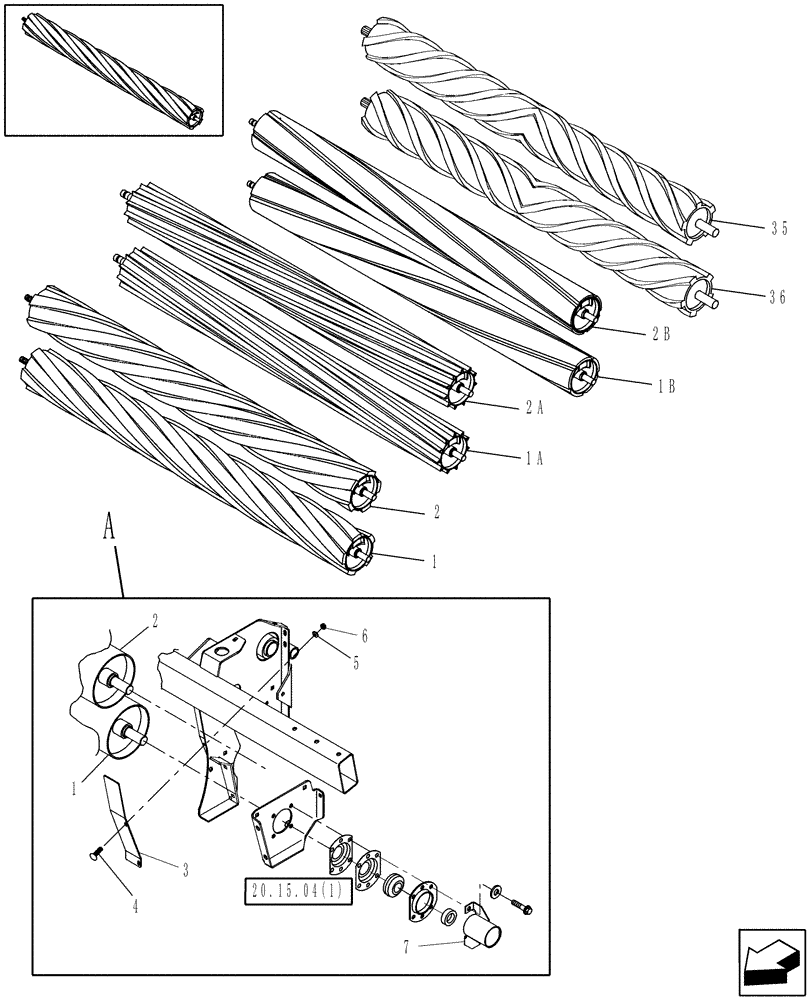

Запчасти Case IH HDX142 (20.15.05[01]) - CONDITIONER ROLLS (58) - ATTACHMENTS/HEADERS

1

86610945

ROLLER ASSY.

Rubber, Lower

1шт.

1a

86610313

ROLL

Lower, Steel

1шт.

DO NOT INTERMIX WITH RUBBER ROLLS

1шт.

1b

87379267

ROLL

Lower, Spiral J, Hi Contact

1шт.

MY2010

1шт.

1

86594327

ROLL

Steel, Slatted

1шт.

2

86610942

ROLLER ASSY.

Rubber, Upper

1шт.

2a

86610315

ROLLER ASSY.

Upper, Steel

1шт.

DO NOT INTERMIX WITH RUBBER ROLLS

1шт.

2b

87379254

ROLL

Upper, Spiral J, Hi Contact

1шт.

3

87670750

GUARD

1шт.

4

280647

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

7

86607882

TUBE,115 mm L

1шт.

35

87489888

ROLL

Upper Chevron Rubber

1шт.

35

84393908

ROLL

Upper Chevron Rubber, Replaces 87489888, Start Serial: YBG604249

1шт.

35

84393908R

REMAN-ROLLER

Upper Chevron Rubber

1шт.

35

84393908C

CORE-ROLLER

Return Number

1шт.

36

87490270

ROLL

Lower Chevron Rubber

1шт.

36

84392701

ROLL

Lower Chevron Rubber, Replaces 87490270, Start Serial: YBG604249

1шт.

36

84392701R

REMAN-ROLLER

Lower Chevron Rubber

1шт.

36

84392701C

CORE-ROLLER

Return Number

1шт.
