Запчасти Case IH HDX142 (20.15.02) - CONDITIONER, SICKLE & AUGER DRIVE SHAFTS (58) - ATTACHMENTS/HEADERS

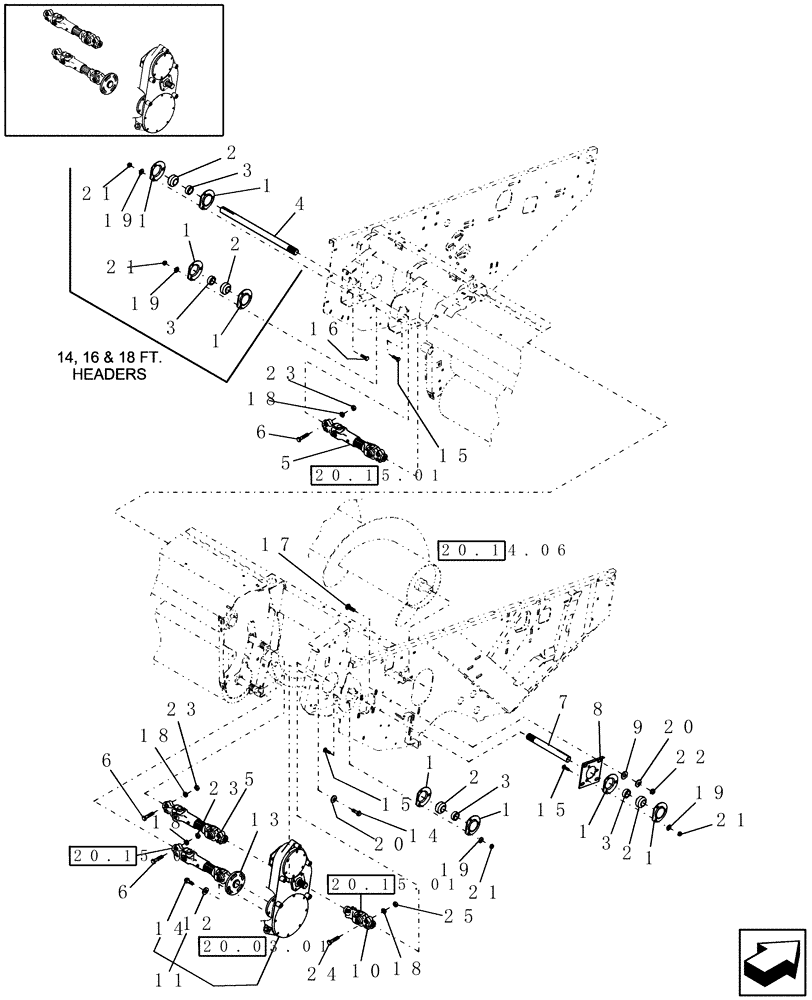

Схема запчастей Case IH HDX142 - (20.15.02) - CONDITIONER, SICKLE & AUGER DRIVE SHAFTS (58) - ATTACHMENTS/HEADERS
5
11
18
18
22
3
9
20
19
5
14
25
1
21
17
15
1
13
1
3
23
3
14
4
12
6
1
20.15.01
20.15.01
20.03.01
20.15.01
20.14.06
15
21
18
24
6
3
2
21
19
19
8
1
21
23
1
18
16
20
15
6
19
1
10
1
2
7
2
23
2

Артикул

Название

Примечание

Количество

1

86636169

FLANGED BEARING

12' (4); 14', 16' & 18' (8)

1шт.

2

76836

BALL BEARING,1.25" ID x 2.4409" OD x 1.4375"

12' (2); 14', 16' & 18' (4)

1шт.

3

557995R11

COLLAR

12' (2); 14', 16' & 18' (4)

1шт.

4

9805621

SHAFT

12'

1шт.

4

86525353

SHAFT

14'

1шт.

4

86525352

SHAFT

16'

1шт.

4

86525351

SHAFT

18'

1шт.

5

86595840

PTO

2шт.

Refer To Component Breakdown

1шт.

6

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

10шт.

7

86632115

SHAFT

14'

1шт.

7

86632116

DRIVE SHAFT

16'

1шт.

7

86632117

SHAFT

18'

1шт.

8

86632453

COVER

1шт.

14', 16', 18' Only

1шт.

9

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

10

86508122

YOKE

1шт.

Refer To Component Breakdown

1шт.

Prior to PIN HCA0027006 (12'), HCA0028120 (14'), HCA0029174 (16'), & HCA0030035 (18')

1шт.

10

87033945

KIT

1шт.

Refer To Component Breakdown

1шт.

From PIN HCA0027006 (12'), HCA0028120 (14'), HCA0029174 (16'), & HCA0030035 (18')

1шт.

11

86642855

GEARBOX ASSY

1шт.

Refer To Component Breakdown

1шт.

12' Only

1шт.

11

86642855R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

11

86642855C

CORE-GEARBOX

Return Number, Gearbox

1шт.

12' Only

1шт.

11

86596529

GEARBOX

1шт.

Refer To Component Breakdown

1шт.

14', 16', 18' Only

1шт.

11

86596529R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

11

86596529C

CORE-GEARBOX

Return Number, Gearbox

1шт.

14', 16', 18' Only

1шт.

12

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

4шт.

13

86595841

PTO

1шт.

Refer To Component Breakdown

1шт.

14

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

12' (4), 14', 16' & 18' (5)

1шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

9шт.

16

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3шт.

12' Only

1шт.

16

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3шт.

14', 16', 18' Only

1шт.

17

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

12' (10); 14', 16' & 18' (14)

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2", 12' (4); 14', 16' & 18' (9)

1шт.

21

425-286

FLANGE NUT,Flg, 3/8"-16, G5

12шт.

22

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

23

425-118

NUT,1/2"-20, G5

10шт.

24

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

4шт.

Prior to PIN HCA0027006 (12'), HCA0028120 (14'), HCA0029174 (16'), & HCA0030035 (18')

1шт.

24

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

4шт.

From PIN HCA0027006 (12'), HCA0028120 (14'), HCA0029174 (16'), & HCA0030035 (18')

1шт.

25

425-118

NUT,1/2"-20, G5

4шт.

Prior to PIN HCA0027006 (12'), HCA0028120 (14'), HCA0029174 (16'), & HCA0030035 (18')

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

4шт.

From PIN HCA0027006 (12'), HCA0028120 (14'), HCA0029174 (16'), & HCA0030035 (18')

1шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

Выбрано товаров: 59
