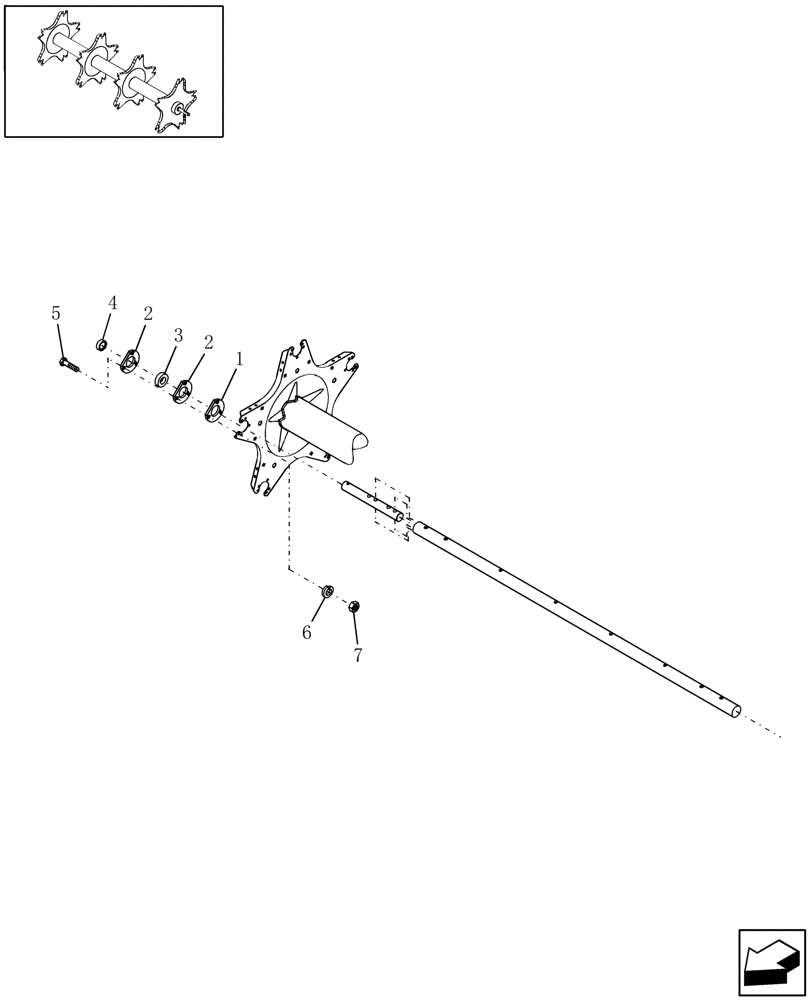

Запчасти Case IH HDX142 (20.13.03[5]) - REEL, TINE BAR CONVERSION FROM BUSHINGS TO BEARINGS (58) - ATTACHMENTS/HEADERS

1

87010788

SPACER

1шт.

14' & 16' (15), 18' (20)

1шт.

2

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

(2) Per Bearing

1шт.

14' & 16' (30), 18' (40)

1шт.

3

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

14' & 16' (15), 18' (20)

1шт.

4

455102R21

COLLAR

1шт.

14' & 16' (15), 18' (20)

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14' & 16' (45), 18' (60)

1шт.

6

492-11031

LOCK WASHER,5/16"

1шт.

14' & 16' (45), 18' (60)

1шт.

7

425-105

NUT,5/16"-18, G5

1шт.

14' & 16' (45), 18' (60)

1шт.
