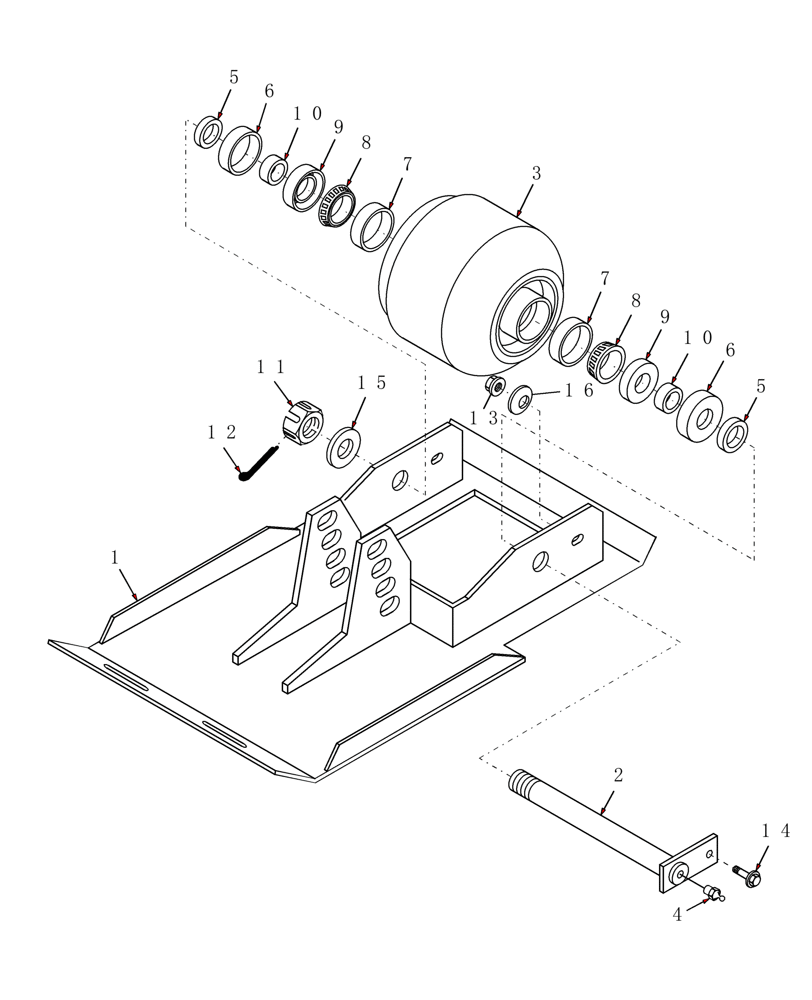

Запчасти Case IH HDX141 (020) - GAUGE WHEEL (44) - WHEELS

1

86548812

SKID/SHOE

Gauge, RH

1шт.

1

86548811

SKID/SHOE

Gauge, LH

1шт.

2

853951

AXLE

1шт.

3

762422

ROLLER

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

86629737

SPACER

2шт.

6

612120

COVER

2шт.

7

572564R1

BEARING CUP

2шт.

8

D29266

ROLLER BEARING,1" ID x 0.58"

2шт.

9

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

2шт.

10

704622

SPACER,25.43mm ID x 31.88mm OD x 12.7mm L

2шт.

11

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

1шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

13

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

14

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

15

495-11106

WASHER,1", SAE

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.
