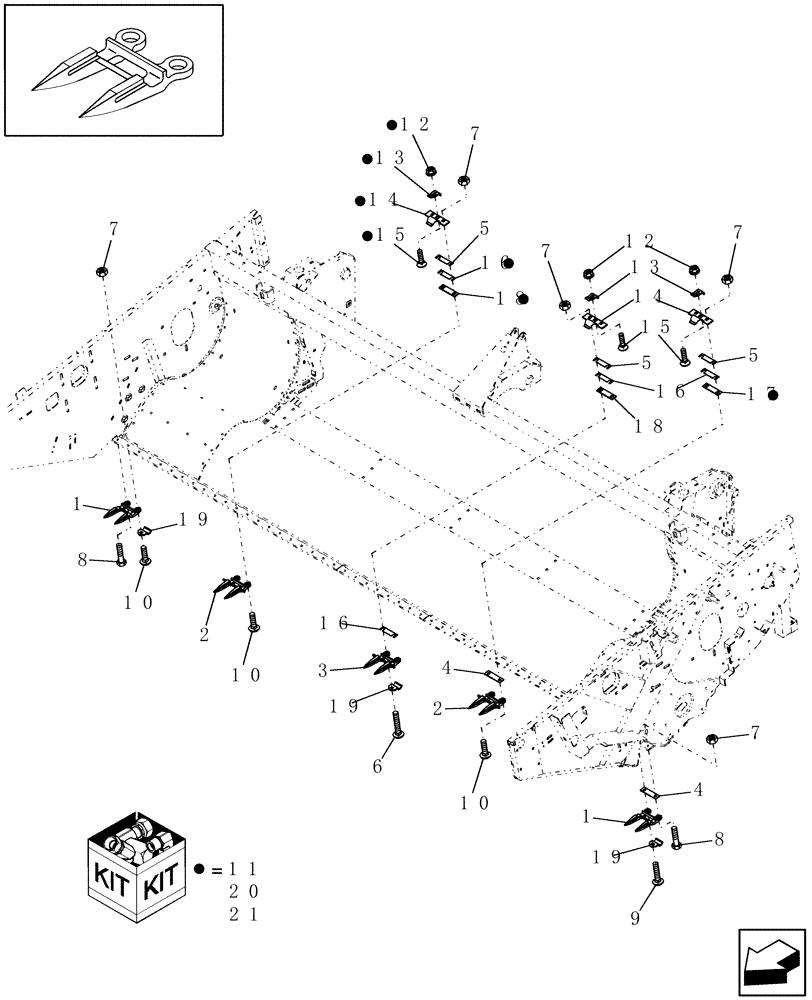

Запчасти Case IH HDX122 (20.14.03) - CUTTERBAR GUARDS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
86615984
GUARD
End , Standard
2шт.
2
86615982
GUARD
Standard, (22) 12', (26) 14', (30) 16', (34) 18'
1шт.
3
86615983
GUARD
Special, Center
1шт.
4
634780
SHIM,.120" Thk
(12) 12', (14) 14', (16) 16', (18) 18'
1шт.
Used On LH Side Of Cutterbar
1шт.
5
199283
SHIM
.036", (11) 12', (13) 14', (15) 16', (17) 18'
1шт.
6
433-728
CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5
(1) 12', (3) 14', 16' & 18'
1шт.
7
425-107
NUT,7/16"-14, G5
(50) 12', (58) 14', (66) 16', (74) 18'
1шт.
8
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
2шт.
9
433-724
CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5
(29) 12', (33) 14', (37) 16', (41) 18'
1шт.
10
433-720
CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5
(18) 12', (20) 14', (24) 16', (28) 18'
1шт.
11
86634230
PACKAGE
Kit, Standard Adjustable Clip
1шт.
Kit Contains Parts For An 18' Header, Smaller Headers Will Have Extra Parts
1шт.
12
231-5346
FLANGE NUT,Flg, 3/8"-16
(11) 12', (13) 14', (15) 16', (17) 18'
1шт.
13
86630787
KNIFE CLIP
Standard Pressure, (11) 12', (13) 14', (15) 16', (17) 18'
1шт.
14
86630786
KNIFE CLIP,Heat Treated
Heat Treated, (11) 12', (13) 14', (15) 16', (17) 18'
1шт.
15
86517871
PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5
(11) 12', (13) 14', (15) 16', (17) 18'
1шт.
16
86622663
SHIM,26.99mm OD x 0.25mm Thk
.010", (11) 12', (13) 14', (15) 16', (17) 18'
1шт.
17
86512826
SHIM
.060", (5) 12', (6) 14', (7) 16', (8) 18'
1шт.
19
638660
CLIP
(9) 12', (13) 14', 16' & 18'
1шт.
20
87399670
CONVERSION KIT
Kit, Stub Guard Field; For Component Breakdown, See Fig. 20.18.03
1шт.
12' & 14'
1шт.
Converts Cutterbar W/Std. Guards To Stub Guard Cutterbar
1шт.
21
87399912
CONVERSION KIT
Kit, Stub Guard Field; For Component Breakdown, See Fig. 20.18.03
1шт.
16' & 18'
1шт.
Converts Cutterbar W/Std. Guards To Stub Guard Cutterbar
1шт.
Выбрано товаров: 27
