Запчасти Case IH HDX122 (20.14.02[1]) - OSR KNIVES WITH STANDARD KNIFE SECTIONS-14 SERRATIONS PER INCH (58) - ATTACHMENTS/HEADERS

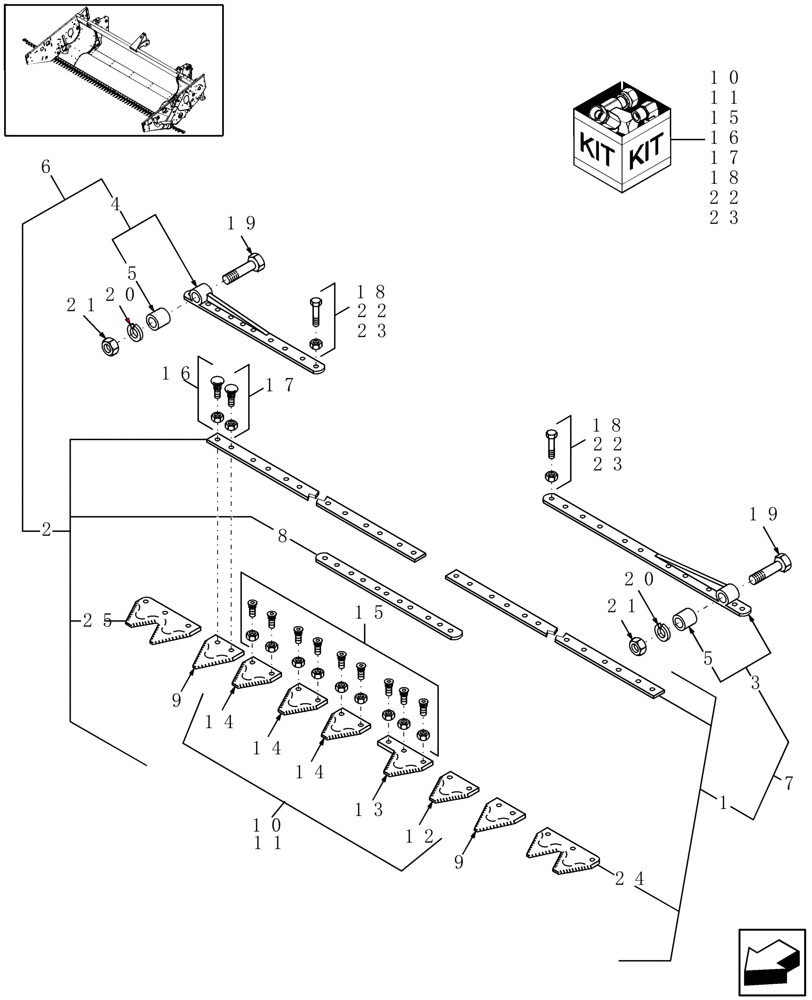

Схема запчастей Case IH HDX122 - (20.14.02[1]) - OSR KNIVES WITH STANDARD KNIFE SECTIONS-14 SERRATIONS PER INCH (58) - ATTACHMENTS/HEADERS
16
7
5
19
2
5
20
10
21
20
21
23
22
15
18
1
22
15
14
22
24
14
3
14
9
11
13
10
23
17
18
8
4
6
23
25
18
9
12
19
11
16
17

Артикул

Название

Примечание

Количество

1

86616078

KNIFE

LH, 6', Headless, BLACK, 23 Sections

1шт.

1

86616544

KNIFE

LH, 6', Headless, CHROME, 23 Sections

1шт.

1

86616076

KNIFE

LH, 7', Headless, BLACK, 27 Sections

1шт.

1

86616542

KNIFE

LH, 7', Headless, CHROME, 27 Sections

1шт.

1

86616074

KNIFE

LH, 8', Headless, BLACK, 31 Sections

1шт.

1

86616540

KNIFE

LH, 8', Headless, CHROME, 31 Sections

1шт.

1

86616072

KNIFE

LH, 9', Headless, BLACK, 35 Sections

1шт.

1

86616538

KNIFE

LH, 9', Headless, CHROME, 35 Sections

1шт.

2

86616079

KNIFE

RH, 6', Headless, BLACK, 22 Sections

1шт.

2

86616545

KNIFE

RH, 6', Headless, CHROME, 22 Sections

1шт.

2

86616077

KNIFE

RH, 7', Headless, BLACK, 26 Sections

1шт.

2

86616543

KNIFE

RH, 7', Headless, CHROME, 26 Sections

1шт.

2

86616075

KNIFE

RH, 8', Headless, BLACK, 30 Sections

1шт.

2

86616541

KNIFE

RH, 8', Headless, CHROME, 30 Sections

1шт.

2

86616073

KNIFE

RH, 9', Headless, BLACK, 34 Sections

1шт.

2

86616539

KNIFE

RH, 9', Headless, CHROME, 34 Sections

1шт.

3

86617755

KNIFE HEAD

LH

1шт.

4

86617752

KNIFE HEAD

RH

1шт.

5

76417

BUSHING,13.97mm ID x 32.66mm OD x 68.71mm L

2шт.

6

86616062

KNIFE

RH, 6', BLACK, 22 Sections

1шт.

6

86616537

KNIFE

RH, 6', CHROME, 22 Sections

1шт.

6

86616060

KNIFE

RH, 7', BLACK, 26 Sections

1шт.

6

86616535

KNIFE

RH, 7', CHROME, 26 Sections

1шт.

6

86616058

KNIFE

RH, 8', BLACK, 31 Sections

1шт.

6

86616533

KNIFE

RH, 8', CHROME, 31 Sections

1шт.

6

86616056

KNIFE

RH, 9', BLACK, 34 Sections

1шт.

6

86616531

KNIFE

RH, 9', CHROME, 34 Sections

1шт.

7

86616061

KNIFE

LH, 6', BLACK, 23 Sections

1шт.

7

86616536

KNIFE

LH, 6', CHROME, 23 Sections

1шт.

7

86616059

KNIFE

LH, 7', BLACK, 27 Sections

1шт.

7

86616534

KNIFE

LH, 7', CHROME, 27 Sections

1шт.

7

86616057

KNIFE

LH, 8' , BLACK, 31 Sections

1шт.

7

86616532

KNIFE

LH, 8', CHROME, 31 Sections

1шт.

7

86616055

KNIFE

LH, 9',BLACK, 35 Sections

1шт.

7

86616530

KNIFE

LH, 9', CHROME, 35 Sections

1шт.

8

86517388

EXTENSION

RH ONLY, All Holes Countersunk

1шт.

9

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

OSR, Black, Back Hardened

1шт.

9

86616527

KNIFE SECTION

CHROME

1шт.

10

86616560

KIT

Overlap, Standard Overserrated Knives

1шт.

11

86616546

KIT

Overlap, Chrome Overserrated Knives

1шт.

12

86615986

KNIFE SECTION

LH, BLACK, Top Countersunk

2шт.

12

86616528

KNIFE SECTION

LH, CHROME, Top Countersunk

2шт.

13

86615985

KNIFE SECTION

LH, BLACK, Tomahawk

1шт.

14

86615987

KNIFE SECTION

RH, BLACK, Bottom Countersunk

3шт.

14

86616529

KNIFE SECTION

RH, CHROME, Bottom Countersunk

3шт.

15

86512289

KIT

Overlap Bolt & Nut, Cap Screw, Hex Socket, Flat Head, Round Serrated Shank, 1/2", 5 LH, 6 RH

1шт.

Includes: (25) 1/2" Knife Bolts (NSS) & (25) Locknuts

1шт.

16

86507777

KIT

Easy, 5/8"

1шт.

Includes: (50) 5/8" Knife Bolts (NSS) & (50) Locknuts

1шт.

17

86517390

BOLT AND NUT

Easy, 3/4", RH

1шт.

Includes: (25) 3/4" Knife Bolts (NSS) & (25) Locknuts

1шт.

18

86507779

BOLT AND NUT,Truss HD, #12 - 24 x 1-1/16", Gr 8

1"

1шт.

Includes: (25) 1"Knife Bolts (NSS) & (25) Locknuts

1шт.

19

426-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

2шт.

22

86562960

KIT

Knife Head

1шт.

23

86507778

KIT

Easy, 7/8"

1шт.

Includes: (25) 7/8"Knife Bolts (NSS) & (25) Locknuts

1шт.

24

86617759

KNIFE SECTION

End, LH

1шт.

25

86617760

KNIFE SECTION

End, RH

1шт.

Выбрано товаров: 61
