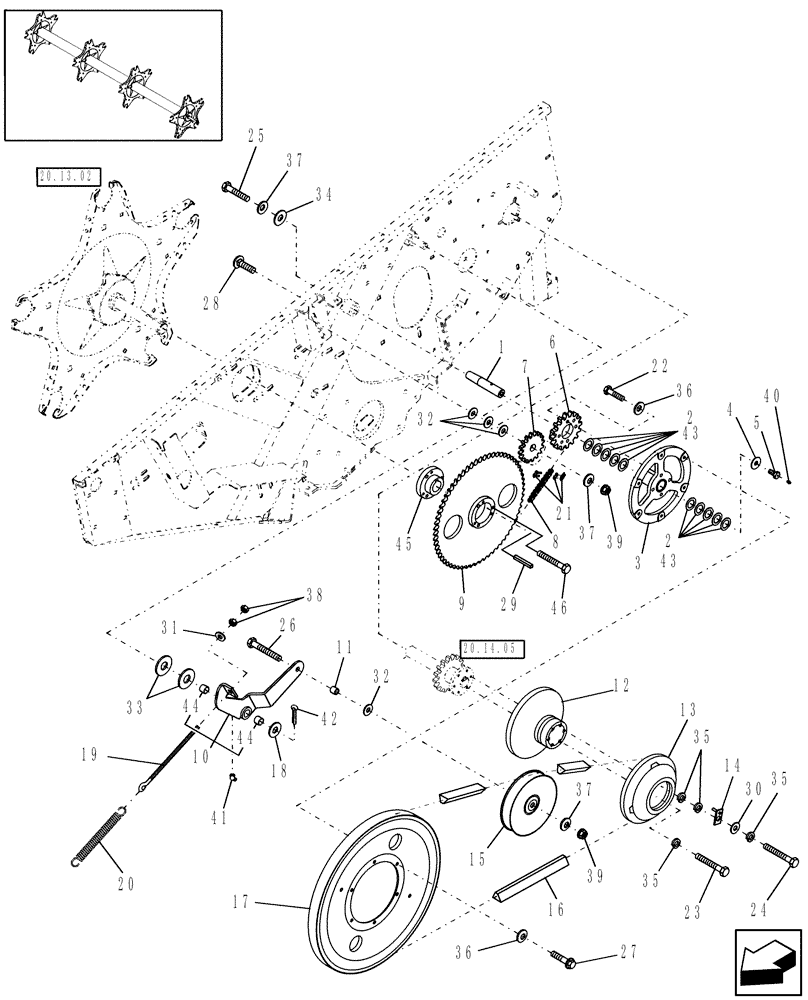

Запчасти Case IH HDX122 (20.13.04[2]) - REEL DRIVE, P.I.N. Y8G600152 & AFTER (58) - ATTACHMENTS/HEADERS

1

86596226

SHAFT

1шт.

2

25069

WASHER,25.8mm ID x 39.7mm OD x 1.59mm Thk

10 ARшт.

3

86705949

HUB

Includes: Bearing 86628556 (2) & Seal 121189 (2)

1шт.

3

86628556

NEEDLE BEARING,Needle, 25.39mm ID x 31.76mm OD x 25.4mm W

2шт.

3

121189

OIL SEAL

2шт.

4

86637848

WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk

1шт.

5

86628559

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

Special

1шт.

6

86900480

SPROCKET

18T, RC60

1шт.

7

86627870

DRIVEN SPROCKET,15T

Idler

1шт.

8

228872

CHAIN

1шт.

9

87553097

SPROCKET

63T, RC60

1шт.

10

86642887

BRACKET, PIVOT

1шт.

11

9849365

SPACER,13.49mm ID x 19.05mm OD x 18.24mm L

1шт.

12

9622860

PULLEY

Male

1шт.

13

9622861

PULLEY

Female

1шт.

14

86631124

PIN,6.35mm OD x 25.4mm L

1шт.

15

605451

IDLER

1шт.

16

86627795

V-BELT,0.88" W x 102.50" L

1шт.

17

86632439

PULLEY

1шт.

18

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

Special

1шт.

19

183356

EYEBOLT,3/8" - 16 x 10" L

1шт.

20

175046

SPRING

1шт.

21

165590

CONNECTING LINK

1шт.

22

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

23

280275

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5шт.

24

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

25

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

26

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

27

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

28

88727

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1шт.

29

25620

WRENCH

KEY, LOCK Square, 3/8" x 2-1/4"

1шт.

30

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

31

495-21044

WASHER,3/8"

1шт.

32

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

33

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

34

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

1шт.

35

80681

LOCK WASHER,5/16"

8шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

37

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

3шт.

38

9628503

NUT,3/8"-16, G5

2шт.

39

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

40

87414

LUBE NIPPLE,1/4" - 28

1шт.

41

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

42

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

1шт.

43

26129

WASHER,25.8mm ID x 39.69mm OD x 0.99mm Thk

2 ARшт.

44

195183

BUSHING,19.13mm ID x 22.3mm OD x 12.7mm L

2шт.

45

87553094

KIT

Includes: (3) Ref. 46

1шт.

46

NSS

NOT SOLD SEPARAT

Bolt, Special

3шт.
