Запчасти Case IH HDX122 (20.06.03[2]) - LIGHT BRACKETS, TY09 & AFTER (55) - ELECTRICAL SYSTEMS

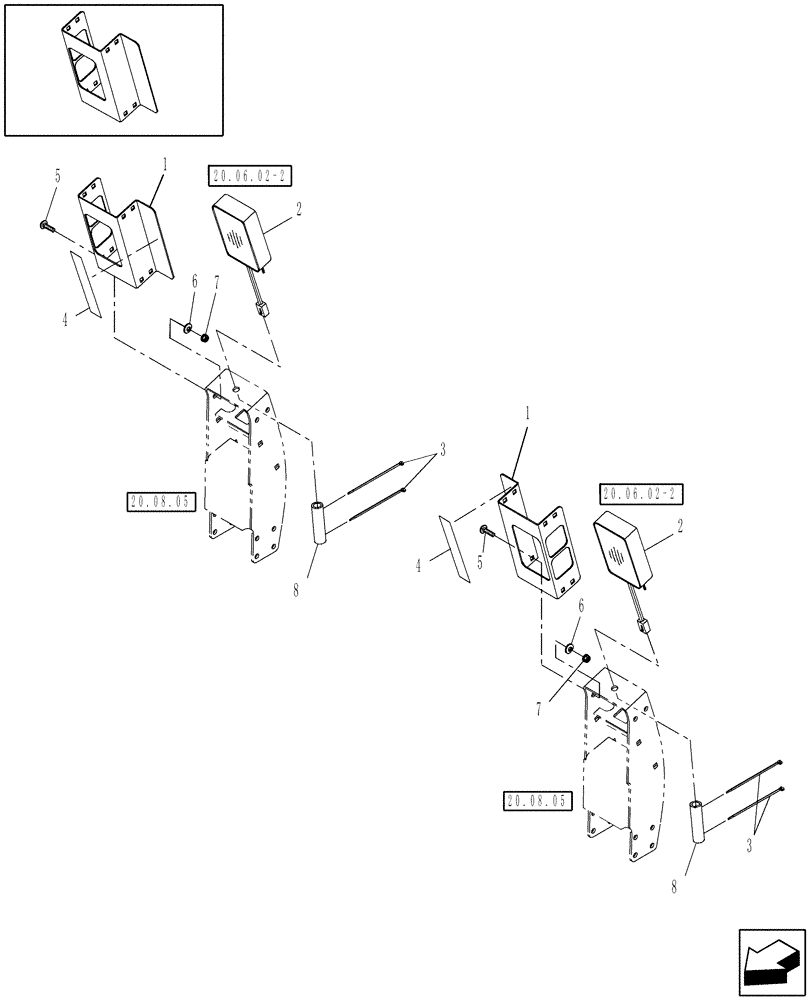

Схема запчастей Case IH HDX122 - (20.06.03[2]) - LIGHT BRACKETS, TY09 & AFTER (55) - ELECTRICAL SYSTEMS
2
20.08.05
20.08.05
7
5
5
2
1
1
20.06.02-2
20.06.02-2
7
3
8
3
4
6
6
4
8

Артикул

Название

Примечание

Количество

1

87647802

BRACKET

2шт.

2

367321A1

LAMP

Has Two 5m studs on bottom

2шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

4

86547782

REFLECTOR,YELLOW

Tape, Yellow Retro Reflective

2шт.

5

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

8

PL

PROCURE LOCALLY

Convoluted Tube

2шт.

Выбрано товаров: 8
