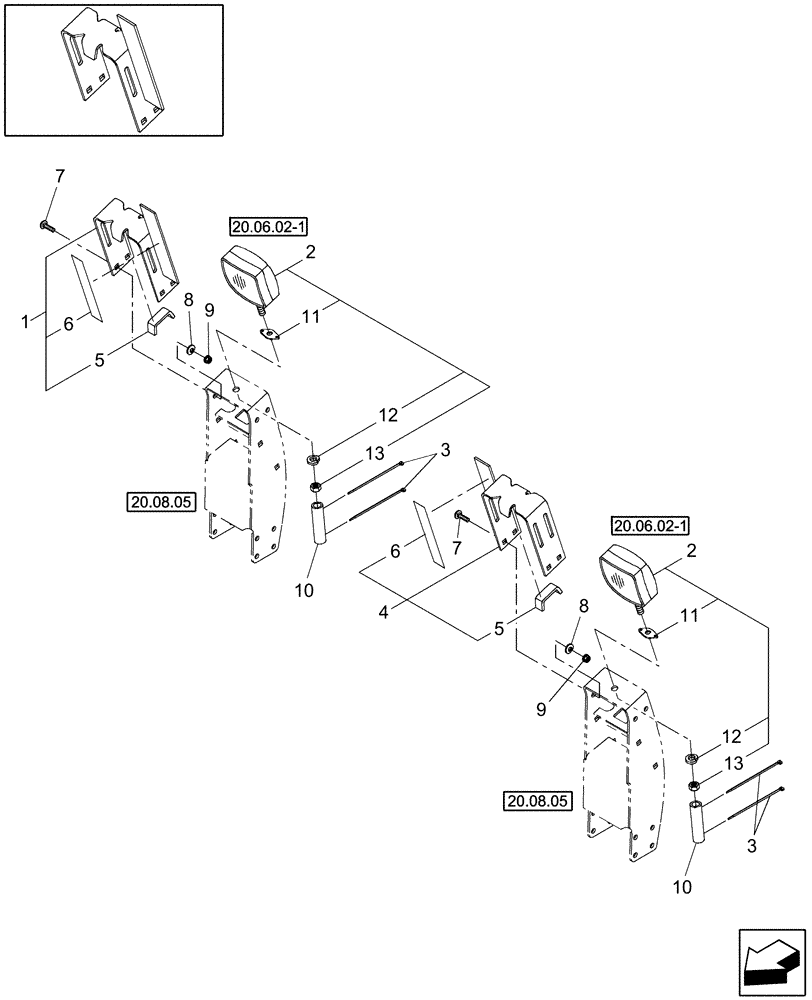

Запчасти Case IH HDX122 (20.06.03[1]) - LIGHT BRACKETS, TY08 & PRIOR (55) - ELECTRICAL SYSTEMS

1

87010138

BRACKET

RH

1шт.

2

86536572

LAMP

Turn/SMV, Double Face A

2шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

4

87010137

INLET MANIFOLD

LH

1шт.

5

86623410

PAD

2шт.

6

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

2шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

9

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

10

PL

PROCURE LOCALLY

Convoluted Tube

2шт.

11

NSS

NOT SOLD SEPARAT

Gasket

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

13

425-118

NUT,1/2"-20, G5

2шт.
