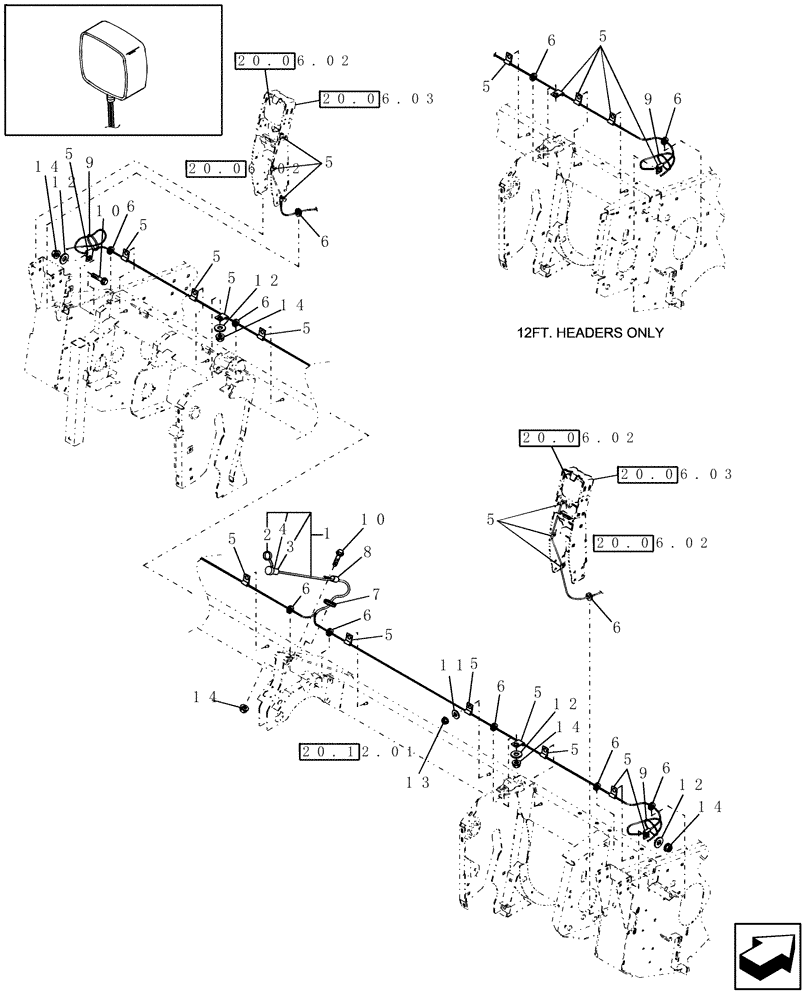

Запчасти Case IH HDX122 (20.06.01) - ELECTRICAL, HARNESS (55) - ELECTRICAL SYSTEMS

1

87010751

WIRE HARNESS

12' & 14'

1шт.

TY08 & Prior

1шт.

1

87717350

HARNESS

12' & 14'

1шт.

TY09 & After

1шт.

1

87010752

WIRE HARNESS

16' & 18'

1шт.

TY08 & Prior

1шт.

1

87717351

HARNESS

16' & 18'

1шт.

TY09 & After

1шт.

2

9861408

CAP

#3 Receptacle

1шт.

3

795231

TERMINAL CONNECTOR,Female, 16 SAE

1шт.

4

9623561

COUPLING

Ring #3

1шт.

5

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

12' & 14' (12), 16' & 18' (14)

1шт.

6

174266

GROMMET

7шт.

7

625670

GROMMET

1шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

9

591182

BAND

2шт.

10

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

3шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12' & 14' (8), 16' & 18' (10)

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

13

425-285

FLANGE NUT,Flg, 5/16"-18, G5

12' & 14' (8), 16' & 18' (10)

1шт.

14

425-286

FLANGE NUT,Flg, 3/8"-16, G5

5шт.
