Запчасти Case IH HDX121 (012) - CUTTERBAR GUARDS (58) - ATTACHMENTS/HEADERS

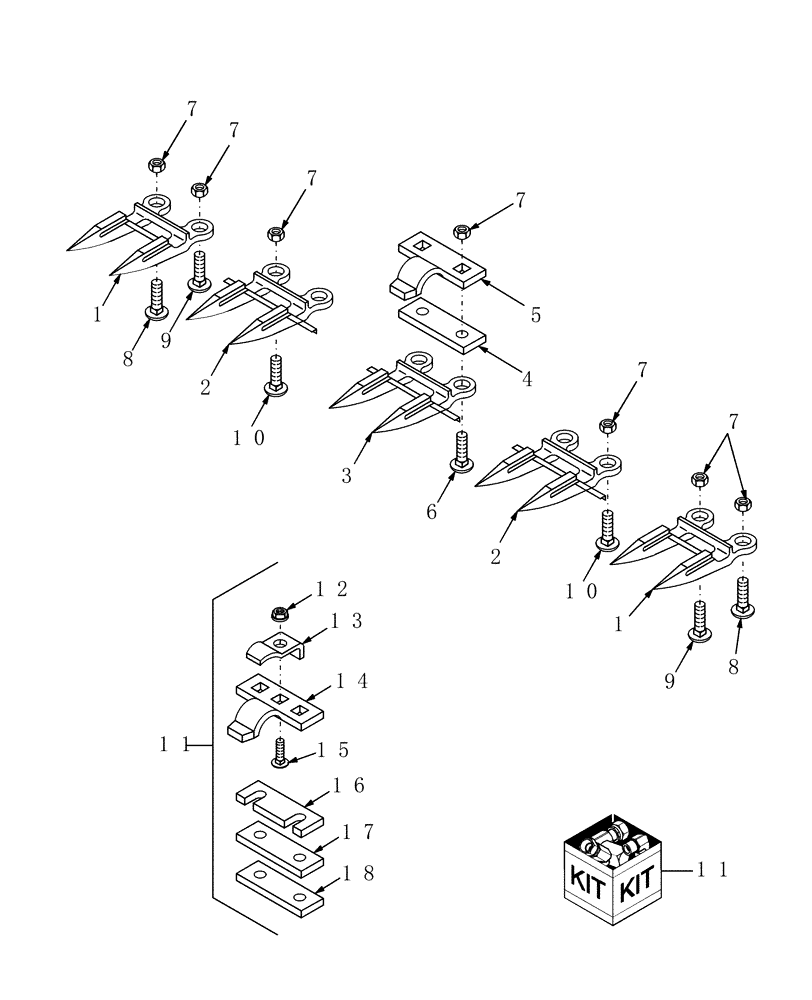

Схема запчастей Case IH HDX121 - (012) - CUTTERBAR GUARDS (58) - ATTACHMENTS/HEADERS
12
8
7
9
16
7
11
10
1
13
15
2
14
10
9
7
3
2
1
5
17
18
11
7
7
4
8
6
7

Артикул

Название

Примечание

Количество

1

86615984

GUARD

End , Standard

2шт.

2

86615982

GUARD

Standard, (22) 12', (26) 14', (30) 16', (34) 18'

1шт.

3

86615983

GUARD

Special, Center

1шт.

4

634780

SHIM,.120" Thk

(12) 12', (14) 14', (16) 16', (18) 18'

1шт.

5

86630786

KNIFE CLIP,Heat Treated

Heat Treated, (11) 12', (13) 14', (15) 16', (17) 18'

1шт.

6

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

4шт.

7

425-107

NUT,7/16"-14, G5

1шт.

8

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

9

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

(26) 12', (30) 14', (34) 16', (38) 18'

1шт.

10

433-720

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/4", Gr 5

(20) 12', (22) 14', (26) 16', (30) 18'

1шт.

11

86634230

PACKAGE

Kit, Standard Adjustable Clip. Includes: Ref. 12 thru 18 (1 Kit Includes All Quantities Listed)

1шт.

12

231-5346

FLANGE NUT,Flg, 3/8"-16

17шт.

13

86630787

KNIFE CLIP

Standard Pressure

17шт.

14

86630786

KNIFE CLIP,Heat Treated

Heat Treated

17шт.

15

86517871

PLOW BOLT,3/8" - 16 x 1 1/8" , Gr 5

17шт.

16

86622663

SHIM,26.99mm OD x 0.25mm Thk

.010"

17шт.

17

86512826

SHIM

.060"

8шт.

18

86512832

SHIM,28.57mm OD x 4.78mm Thk

.188"

9шт.

Выбрано товаров: 18
