Запчасти Case IH HDX121 (011) - REEL (58) - ATTACHMENTS/HEADERS

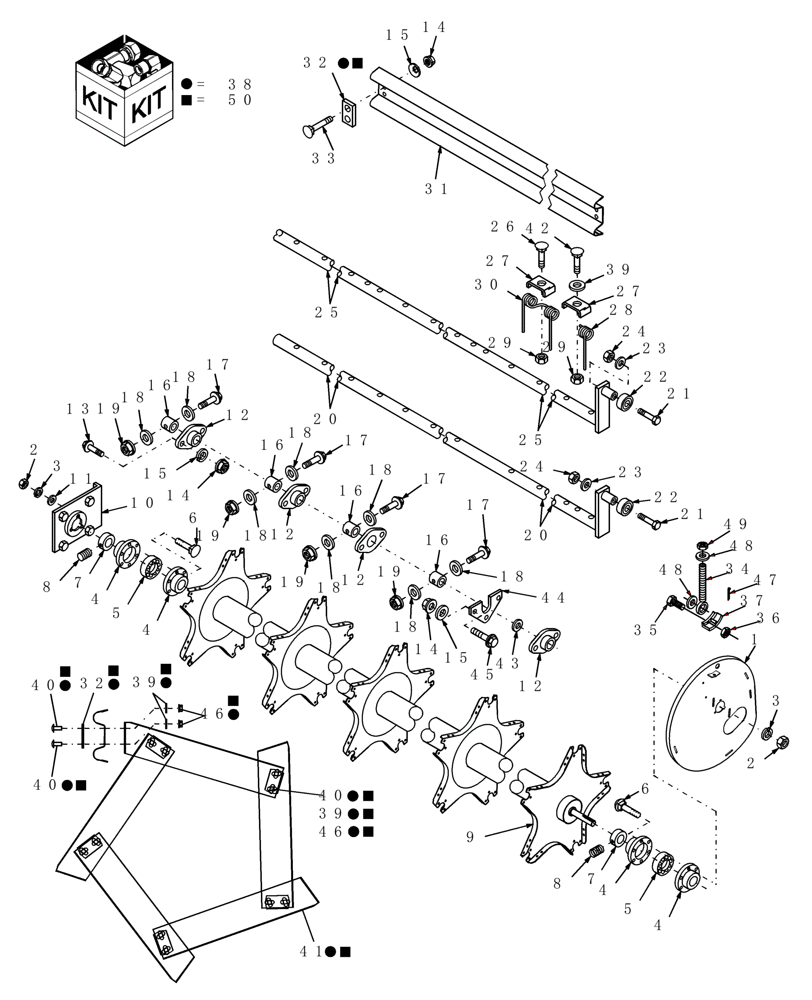

Схема запчастей Case IH HDX121 - (011) - REEL (58) - ATTACHMENTS/HEADERS
12
18
2
29
29
8
46
4
17
27
23
46
6
19
18
15
9
7
30
10
12
42
18
12
23
11
21
24
5
15
7
1
35
18
8
25
20
26
21
16
18
28
19
16
47
14
45
40
40
18
41
16
17
34
40
15
39
6
19
48
4
14
48
44
5
32
17
4
14
3
49
16
39
22
12
20
36
24
39
18
13
18
43
22
2
37
4
19
31
27
3
17
25
32
33

Артикул

Название

Примечание

Количество

1

86504631

PIN

1шт.

2

425-106

NUT,3/8"-16, Cl 5

6шт.

3

492-11038

LOCK WASHER,3/8"

6шт.

4

86635012

FLANGE

Bearing

4шт.

5

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

2шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

6шт.

7

517645R11

COLLAR

2шт.

8

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

2шт.

9

9804889

REEL

12' (4 Spider Reel)

1шт.

9

86568913

REEL

14' (4 Spider Reel)

1шт.

9

86568914

REEL

16' (4 Spider Reel)

1шт.

9

86568915

REEL

18' (5 Spider Reel)

1шт.

10

86632446

SUPPORT

1шт.

11

495-21044

WASHER,3/8"

3шт.

12

86524321

HOUSING

12', 14' & 16'

20шт.

12

86524321

HOUSING

18'

25шт.

13

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(30) 12', 14' & 16'; (40) 18'

1шт.

14

425-285

FLANGE NUT,Flg, 5/16"-18, G5

(85) 12', 14' & 16'; (105) 18'

1шт.

15

492-11031

LOCK WASHER,5/16"

1шт.

16

86523294

BUSHING,33.27mm ID x 44.07mm OD x 54.86mm L

12', 14', 16'

20шт.

16

86523294

BUSHING,33.27mm ID x 44.07mm OD x 54.86mm L

18'

25шт.

17

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

(20) 12', 14' & 16'; (25) 18'

1шт.

18

495-11028

WASHER,1/4", SAE

(40) 12', 14' & 16'; (50) 18'

1шт.

19

280129

NUT,1/4"-20

(20) 12', 14' & 16'; (25) 18'

1шт.

20

86529510

TINE BAR

12', 7-1/2" (190 mm) From Arm To Second Tine Hole

2шт.

20

86529517

TINE BAR

14', 7-1/2" (190 mm) From Arm To Second Tine Hole

2шт.

20

86529524

TINE BAR

16', 7-1/2" (190 mm) From Arm To Second Tine Hole

2шт.

20

86529531

TINE BAR

18', 7-1/2" (190 mm) From Arm To Second Tine Hole

2шт.

21

121831

BOLT

Cap, HH, G2, 5/8"-18 x 2-1/4"

5шт.

22

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

5шт.

23

435-11040

GROOVED PIN,5/16" x 2 1/2", Type A

5шт.

24

425-1110

NUT,5/8"-18, G5

5шт.

25

86529513

TINE BAR

12', 9-3/4" (248 mm) From Arm To Second Tine Hole

3шт.

25

86529520

TINE BAR

14', 9-3/4" (248 mm) From Arm To Second Tine Hole

3шт.

25

86529527

TINE BAR

16', 9-3/4" (248 mm) From Arm To Second Tine Hole

3шт.

25

86529534

TINE BAR

18', 9-3/4" (248 mm) From Arm To Second Tine Hole

3шт.

26

433-532

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

(80) 12'; (95) 14'; (110) 16'; (125) 18'

1шт.

27

772028

CLIP

(80) 12'; (95) 14'; (100) 16'; (125) 18'

1шт.

28

86553531

TINE

LH

5шт.

28

86643210

TINE

LH, Rubber Mount (Alternate)

5шт.

29

280736

NUT,5/16"-18, GC

5шт.

30

86523292

REEL TINE

Reel, (80) 12'; (95) 14'; (100) 16'; (125) 18'

1шт.

31

86560105

BAT

12', Flat-Folded Edges

5шт.

31

86560097

BAT

14', Flat-Folded Edges

5шт.

31

86560098

BAT

16', Flat-Folded Edges

5шт.

31

86560099

BAT

18', Flat-Folded Edges

5шт.

32

86631084

REINFORCEMENT

(20) 12', 14' & 16'; (25) 18'

1шт.

33

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

(40) 12', 14' & 16'; (50) 18'

1шт.

34

700641

EYEBOLT

G2, 1/2"-13 x 9"

1шт.

35

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

36

232-4146

NUT,3/8"-16, GC

1шт.

37

181853

CAM

1шт.

38

86618642

KIT

Bat Truss, 12', 14', 16'

1шт.

39

495-21038

WASHER,5/16"

1шт.

40

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

41

86526074

BASE

Truss

1шт.

42

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5шт.

43

86531485

WASHER

5шт.

44

86631090

GUIDE

5шт.

45

86603628

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1"

15шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

47

432-816

COTTER PIN,1/8" x 1"

1шт.

48

495-21056

WASHER,1/2"

2шт.

49

425-108

NUT,1/2" - 13, Gr 5

2шт.

50

86618642

KIT

Bat Truss, 12-16'

1шт.

50

86618643

KIT

Bat Truss, 18'

1шт.

50

86618642

KIT

Bat Truss, 12-16'

1шт.

Выбрано товаров: 67
